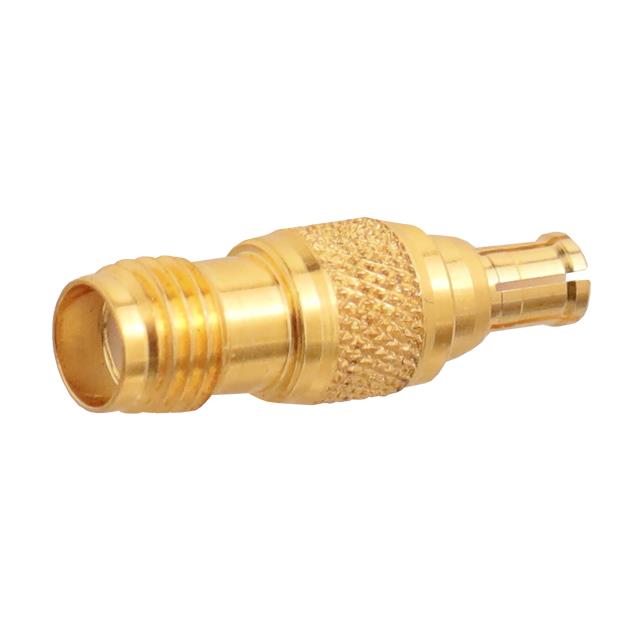

CGM-1060-SF-MCM-09

Active

Cinch Connectivity Solutions Trompeter

COAX ADAPT SMA TO MCX

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

COAX ADAPT SMA TO MCX

Technical Specifications

Parameters and characteristics for this part

Specification	CGM-1060-SF-MCM-09

Adapter Series	SMA to MCX
Adapter Type	Plug to Jack
Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	Male Pin, MCX Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Insertion Loss	0.5 dB
Mounting Type	Free Hanging (In-Line)
Style	Straight

Part	Frequency - Max [Max]	Convert From (Adapter End)	Adapter Type	Dielectric Material	Convert To (Adapter End)	Fastening Type	Conversion Type	Body Finish	Center Contact Plating	Center Contact Material	Body Material	Impedance	Adapter Series	Style	Mounting Type	Insertion Loss
Cinch Connectivity Solutions Trompeter CGM-1060-SF-MCM-09	6000 MHz	Female Socket SMA Jack	Plug to Jack	Polytetrafluoroethylene (PTFE)	Male Pin MCX Plug	Snap-On Threaded	Between Series	Gold	Gold	Beryllium Copper	Brass	50 Ohms	SMA to MCX	Straight	Free Hanging (In-Line)	0.5 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To MCX Plug, Male Pin 50 Ohms
