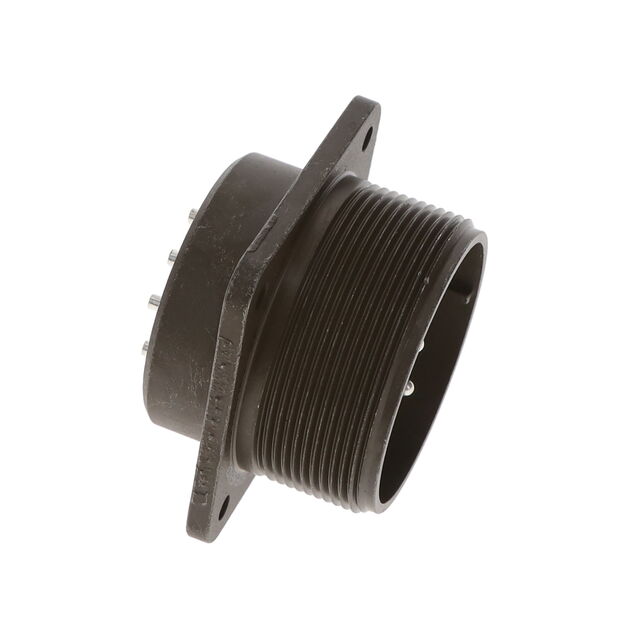

MS3102A28-2P - MS3102A28-2P

MS3102A28-2P

Active
Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
MS3102A28-2P - MS3102A28-2P

MS3102A28-2P

Active
Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationMS3102A28-2P
ApplicationsMilitary, Marine
ColorOlive Drab
Connector TypeReceptacle, Male Pins
Contact Finish - MatingSilver
Contact MaterialCopper Alloy
Current Rating (Amps)13 A, 23 A
GradeMilitary
Ingress ProtectionEnvironment Resistant
Insert MaterialNeoprene
Mounting FeatureFlange
Number of Positions14
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
OrientationN
Primary MaterialMetal
QualificationMIL-DTL-5015
Shell FinishOlive Drab Chromate over Cadmium
Shell MaterialAluminum Alloy
Shell Size - Insert28-2
ShieldingUnshielded
Voltage Rating1250 VDC, 900 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBag 1$ 35.82
10$ 31.37
25$ 30.01
50$ 29.04
100$ 28.07
250$ 26.53

Description

General part information

MS3102A28 Series

14 Position Circular Connector Receptacle, Male Pins Solder Cup
