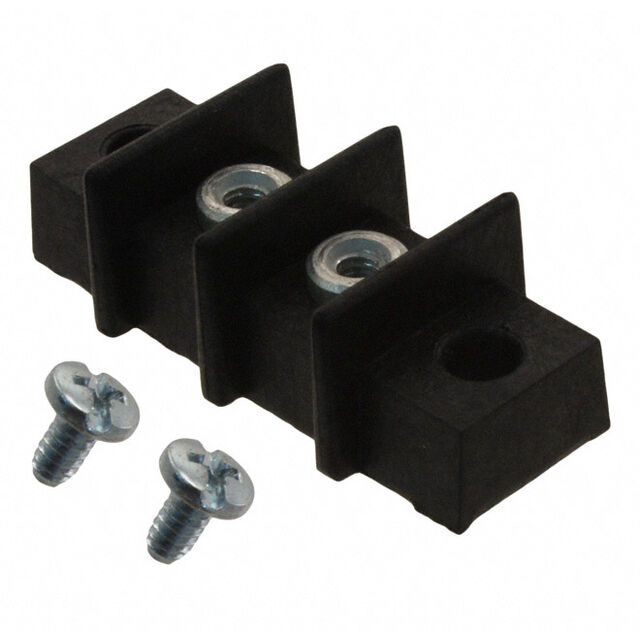

GBPX-2

Active

Curtis Industries

CONN BARRIER STRIP 2CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTerminal Blocks Catalog Datasheet

GBPX-2

Active

Curtis Industries

CONN BARRIER STRIP 2CIRC 0.438"

Deep-Dive with AI

DocumentsTerminal Blocks Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GBPX-2

Barrier Type	2 Wall (Dual)
Bottom Termination	PC Pin
Color	Black
Current Rating (Amps)	20 A
Features	Flange
Material - Insulation	Polyphenylene Oxide (PPO)
Material Flammability Rating	UL94 V-0
Mounting Type	Chassis, Panel, Through Hole
Number of Circuits	2
Number of Rows	1
Number of Wire Entries	2
Operating Temperature	110 °C
Pitch [x]	11.12 mm
Pitch [x]	0.438 in
Terminal Block Type	Barrier Block
Terminal Screw Material	Steel
Top Termination	Screws
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG

GBPX Series

Part	Number of Wire Entries	Pitch [x]	Pitch [x]	Wire Gauge [Min]	Wire Gauge [Max]	Number of Rows	Current Rating (Amps)	Features	Terminal Screw Material	Top Termination	Material - Insulation	Material Flammability Rating	Operating Temperature	Barrier Type	Color	Number of Circuits	Bottom Termination	Terminal Block Type	Mounting Type	Number of Wire Entries [custom]
Curtis Industries GBPX-18	18	11.12 mm	0.438 in	12 AWG	22 AWG	1	20 A	Flange	Steel	Screws	Polyphenylene Oxide (PPO)	UL94 V-0	110 °C	2 Wall (Dual)	Black	18	PC Pin	Barrier Block	Chassis Panel Through Hole
Curtis Industries GBPX-6	6	11.12 mm	0.438 in	12 AWG	22 AWG	1	20 A	Flange	Steel	Screws	Polyphenylene Oxide (PPO)	UL94 V-0	110 °C	2 Wall (Dual)	Black	6	PC Pin	Barrier Block	Chassis Panel Through Hole
Curtis Industries GBPX-13	13	11.12 mm	0.438 in	12 AWG	22 AWG	1	20 A	Flange	Steel	Screws	Polyphenylene Oxide (PPO)	UL94 V-0	110 °C	2 Wall (Dual)	Black	13	PC Pin	Barrier Block	Chassis Panel Through Hole
Curtis Industries GBPX-7	7	11.12 mm	0.438 in	12 AWG	22 AWG	1	20 A	Flange	Steel	Screws	Polyphenylene Oxide (PPO)	UL94 V-0	110 °C	2 Wall (Dual)	Black	7	PC Pin	Barrier Block	Chassis Panel Through Hole
Curtis Industries GBPX-26	26	11.12 mm	0.438 in	12 AWG	22 AWG	1	20 A	Flange	Steel	Screws	Polyphenylene Oxide (PPO)	UL94 V-0	110 °C	2 Wall (Dual)	Black	26	PC Pin	Barrier Block	Chassis Panel Through Hole
Curtis Industries GBPX-14	14	11.12 mm	0.438 in	12 AWG	22 AWG	1	20 A	Flange	Steel	Screws	Polyphenylene Oxide (PPO)	UL94 V-0	110 °C	2 Wall (Dual)	Black	14	PC Pin	Barrier Block	Chassis Panel Through Hole
Curtis Industries GBPX-1				12 AWG	22 AWG	1	20 A	Flange	Steel	Screws	Polyphenylene Oxide (PPO)	UL94 V-0	110 °C	2 Wall (Dual)	Black	1	PC Pin	Barrier Block	Chassis Panel Through Hole	1
Curtis Industries GBPX-2	2	11.12 mm	0.438 in	12 AWG	22 AWG	1	20 A	Flange	Steel	Screws	Polyphenylene Oxide (PPO)	UL94 V-0	110 °C	2 Wall (Dual)	Black	2	PC Pin	Barrier Block	Chassis Panel Through Hole
Curtis Industries GBPX-25	25	11.12 mm	0.438 in	12 AWG	22 AWG	1	20 A	Flange	Steel	Screws	Polyphenylene Oxide (PPO)	UL94 V-0	110 °C	2 Wall (Dual)	Black	25	PC Pin	Barrier Block	Chassis Panel Through Hole
Curtis Industries GBPX-5	5	11.12 mm	0.438 in	12 AWG	22 AWG	1	20 A	Flange	Steel	Screws	Polyphenylene Oxide (PPO)	UL94 V-0	110 °C	2 Wall (Dual)	Black	5	PC Pin	Barrier Block	Chassis Panel Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.54
		10	$ 3.46
		25	$ 3.24
		50	$ 2.88
		100	$ 2.82
		250	$ 2.60
		500	$ 2.35
		1000	$ 2.08
		5000	$ 1.96

Description

General part information

GBPX Series

2 Circuit 0.438" (11.12mm) Barrier Block Connector Screws
