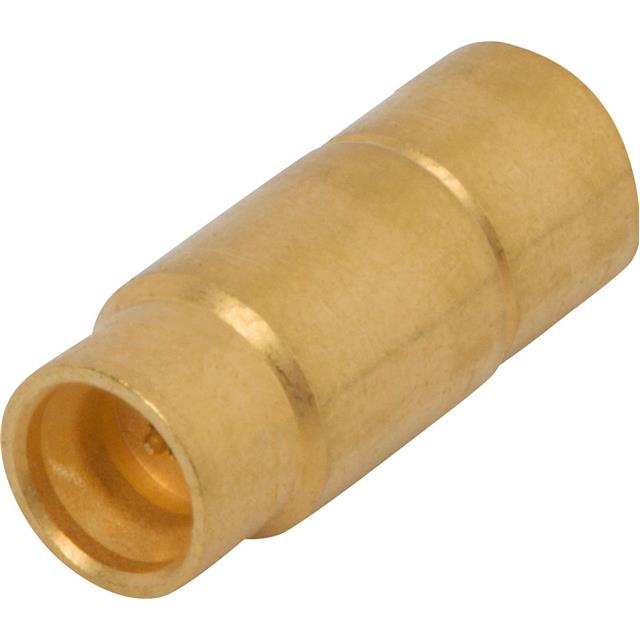

8038-6005

Active

Amphenol SV Microwave

CONN TERMINATOR PLUG SMPS 50 OHM

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN TERMINATOR PLUG SMPS 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	8038-6005

Body Finish	Gold
Body Material	Beryllium Copper
Connector Style	SMPS
Connector Type	Male Pin, Plug
Contact Finish	Gold
Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Smooth Bore
Frequency - Max [Max]	65 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

Part	Features	Mounting Type	Impedance	Body Finish	Dielectric Material	Contact Finish	Frequency - Max [Max]	Connector Style	Connector Type	Body Material	Contact Material
Amphenol SV Microwave 8038-6004	Full Detent	Cap Free Hanging	50 Ohms	Gold	Polytetrafluoroethylene (PTFE)	Gold	70 GHz	SMPS	Male Pin Plug	Stainless Steel	Beryllium Copper
Amphenol SV Microwave 8038-6003	Smooth Bore	Cap Free Hanging	50 Ohms	Gold	Polytetrafluoroethylene (PTFE)	Gold	70 GHz	SMPS	Male Pin Plug	Stainless Steel	Beryllium Copper
Amphenol SV Microwave 8038-6005	Smooth Bore	Cap Free Hanging	50 Ohms	Gold	Polytetrafluoroethylene (PTFE)	Gold	65 GHz	SMPS	Male Pin Plug	Beryllium Copper	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 79.58

General part information

Terminator Coax Connector Plug, Male Pin SMPS 50 Ohms
