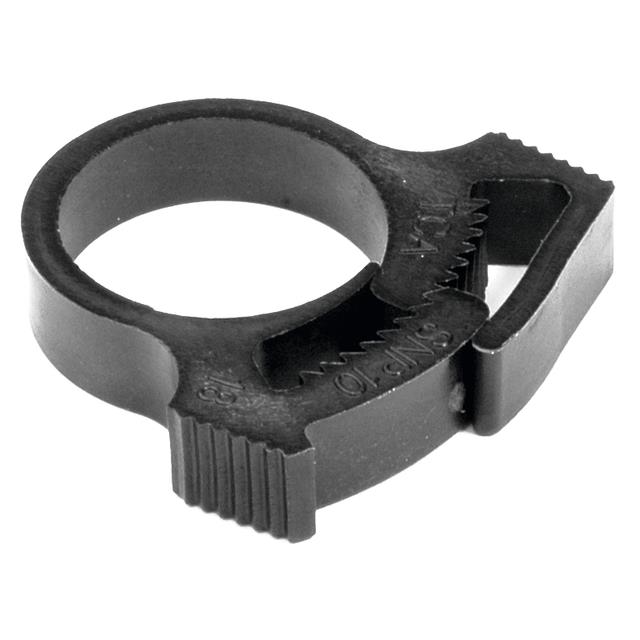

SNP22GHS0M4

Active

HELLERMANNTYTON

CBL CLIP HOSE BLACK

Search across all available documentation for this part.

Active

HELLERMANNTYTON

CBL CLIP HOSE BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	SNP22GHS0M4

Color	Black
Features	Impact Resistant, Heat Stabilized
Length [Max]	1.488 in
Length [Max]	37.8 mm
Length [Min]	0.941 in
Length [Min]	23.9 mm
Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 HB
Material Thickness	1.8 mm
Material Thickness	0.071 in
Opening Size [Max]	27.84 mm
Opening Size [Max] [z]	1.096 in
Opening Size [Min]	24.08 mm
Opening Size [Min] [z]	0.948 in
Type	Clamp, Hose
Type Attributes	Push-Fit
Width [x]	0.236 in
Width [x]	6 mm

Part	Features	Type Attributes	Opening Size [Min] [z]	Opening Size [Max] [z]	Opening Size [Max]	Opening Size [Min]	Color	Width [x]	Width [x]	Material	Type	Material Thickness	Material Thickness	Length [Max]	Length [Max]	Length [Min]	Length [Min]	Material Flammability Rating
HELLERMANNTYTON SNP22GHS0M4	Heat Stabilized Impact Resistant	Push-Fit	0.948 in	1.096 in	27.84 mm	24.08 mm	Black	0.236 in	6 mm	Polyamide (PA66) Nylon 6/6 Glass Filled	Clamp Hose	1.8 mm	0.071 in	1.488 in	37.8 mm	0.941 in	23.9 mm	UL94 HB
