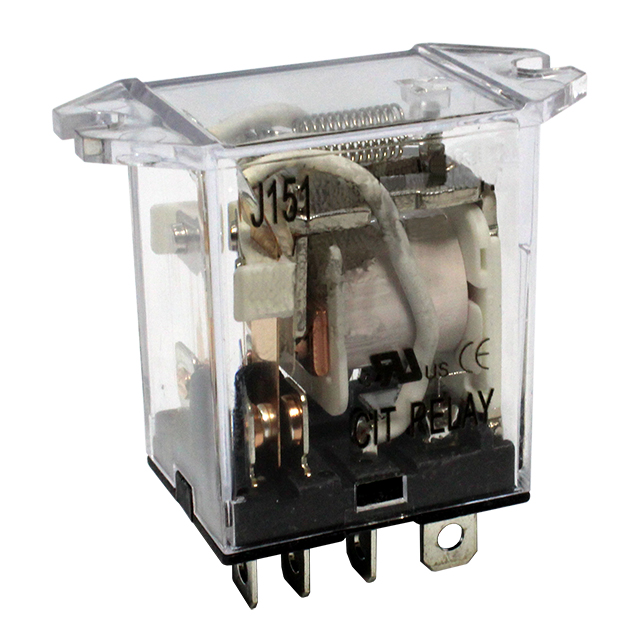

J1511AF12VDC.9
ActiveCIT Relay and Switch
RELAY GEN PURPOSE SPST 20A 12V
Deep-Dive with AI
Search across all available documentation for this part.
J1511AF12VDC.9
ActiveCIT Relay and Switch
RELAY GEN PURPOSE SPST 20A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | J1511AF12VDC.9 |
|---|---|
| Coil Current | 75 mA |
| Coil Resistance | 160 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 12 A |
| Load - Max Switching | 6000 VA |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 25 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 25 ms |
| Switching Voltage [Max] | 300 VAC |
| Termination Style | Plug In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.39 | |
| 20 | $ 3.18 | |||
| 40 | $ 2.69 | |||
| 80 | $ 2.54 | |||
| 240 | $ 2.49 | |||
Description
General part information
J1511A Series
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Chassis Mount
