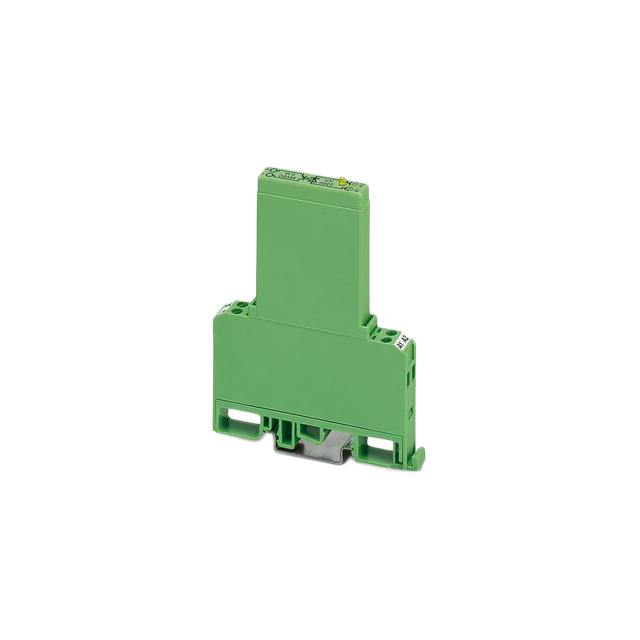

2948953
ActivePhoenix Contact
SSR RELAY SPST-NO 100MA 4-48V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2948953
ActivePhoenix Contact
SSR RELAY SPST-NO 100MA 4-48V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2948953 |
|---|---|
| Approval Agency | cULus, EAC, UR |
| Load Current | 100 mA |
| Mounting Type | DIN Rail |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Output Type | DC |
| Package / Case | Module |
| Termination Style | Screw Terminal |
| Voltage - Input | 230 VAC |
| Voltage - Load [Max] | 48 V |
| Voltage - Load [Min] | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 117.94 | |
Description
General part information
294895 Series
Solid State SPST-NO (1 Form A) Module
