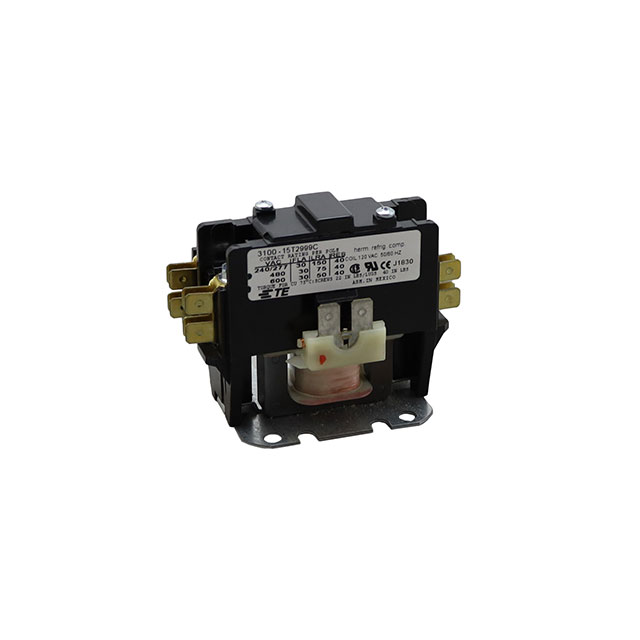

3100-15T2999C
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY CONTACTOR SPST 30A 120V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3100-15T2999C
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY CONTACTOR SPST 30A 120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3100-15T2999C |
|---|---|
| Coil Power | 5.3 VA |
| Coil Resistance | 420 Ohms |
| Coil Voltage | 120 VAC |
| Contact Form | SPST-NO (DM) (1 Form X) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 30 A |
| Features | Insulation - Class B |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 88 VAC/DC |
| Must Release Voltage | 20 VAC |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -40 °C |
| Switching Voltage | 600 VAC |
| Termination Style | Screw Terminal, Quick Connect |
| Termination Style | 0.25 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 32.96 | |
| 10 | $ 28.01 | |||
| 25 | $ 26.66 | |||
Description
General part information
3100-15 Series
RELAY CONTACTOR SPST 30A 120V
