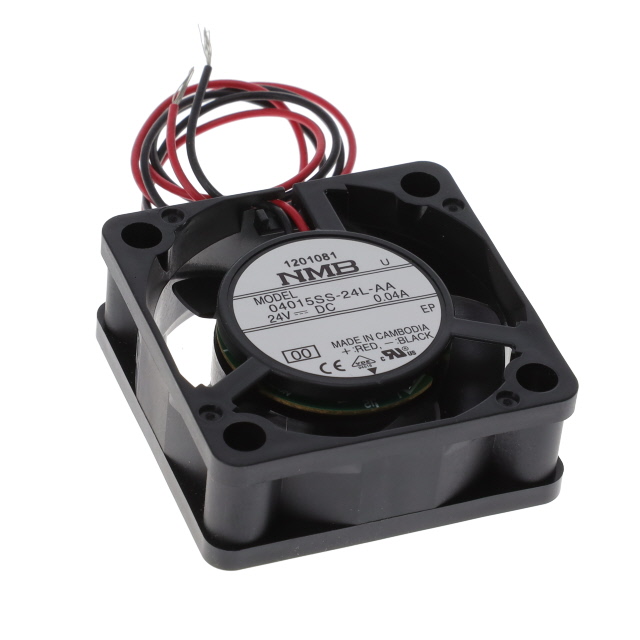

04015SS-24L-AA-00

Active

NMB TECHNOLOGIES

AXIAL FAN, 40MM, 24VDC, 5.7CFM, 26DB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

04015SS-24L-AA-00

Active

NMB TECHNOLOGIES

AXIAL FAN, 40MM, 24VDC, 5.7CFM, 26DB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	04015SS-24L-AA-00

Air Flow	5.7 CFM
Air Flow	0.16 m³/min
Bearing Type	Sleeve
Current Rating (Amps)	30 mA
Fan Type	Tubeaxial
Features	Auto Restart
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	26 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	600 mW
RPM	6300 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	27.6 VDC
Voltage Range [Min]	10 VDC
Width [x]	15 mm

04015SS Series

Part	Width [x]	Power (Watts)	Termination	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Air Flow	Air Flow	RPM	Current Rating (Amps)	Material - Frame	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Features	Noise	Bearing Type	Fan Type	Voltage Range [Min]	Voltage Range [Max]	Voltage - Rated	Lifetime @ Temp.	Material - Blade	Static Pressure	Static Pressure	Weight	Weight
NMB TECHNOLOGIES 04015SS-24L-AL-00	15 mm	600 mW	3 Wire Leads	40 mm	Square	40 mm	5.7 CFM	0.16 m³/min	6300 RPM	0.25 A	Plastic	70 °C	70 °C	-10 °C	-10 °C	Auto Restart Locked Rotor Sensor	26 dB	Sleeve	Tubeaxial	10 VDC	27.6 VDC	24 VDC	40000 Hrs	Plastic
NMB TECHNOLOGIES 04015SS-12N-AA-00	15 mm	720 mW	2 Wire Leads	40 mm	Square	40 mm	7.4 CFM	0.207 mł/min	8300 RPM	60 mA	Aluminum	70 °C	70 °C	-10 °C	-10 °C	Auto Restart	32 dB	Sleeve	Tubeaxial	6 VDC	13.8 VDC	12 VDC	40000 Hrs	Plastic	67.3 Pa	0.27 in H2O
NMB TECHNOLOGIES 04015SS-24L-AT-00	15 mm	600 mW	3 Wire Leads	40 mm	Square	40 mm	5.7 CFM	0.16 m³/min	6300 RPM	30 mA	Aluminum	70 °C	70 °C	-10 °C	-10 °C	Auto Restart Speed Sensor (Tach)	26 dB	Sleeve	Tubeaxial	10 VDC	27.6 VDC	24 VDC	40000 Hrs	Plastic
NMB TECHNOLOGIES 04015SS-12N-AL-00	15 mm	720 mW	3 Wire Leads	40 mm	Square	40 mm	7.4 CFM	0.207 mł/min	8300 RPM	60 mA	Aluminum	70 °C	70 °C	-10 °C	-10 °C	Auto Restart Locked Rotor Sensor	32 dB	Sleeve	Tubeaxial	6 VDC	13.8 VDC	12 VDC	40000 Hrs	Plastic	67.3 Pa	0.27 in H2O
NMB TECHNOLOGIES 04015SS-24M-AT-00	15 mm		3 Wire Leads	40 mm	Square	40 mm	6.4 CFM	0.179 mł/min	7300 RPM	40 mA	Aluminum	70 °C	70 °C	-10 °C	-10 °C	Auto Restart Speed Sensor (Tach)	29 dB(A)	Sleeve	Tubeaxial	10 VDC	25.2 VDC	24 VDC	40000 Hrs	Plastic	52.3 Pa	0.21 in H2O
NMB TECHNOLOGIES 04015SS-12N-AT-00	15 mm	720 mW	3 Wire Leads	40 mm	Square	40 mm	7.4 CFM	0.207 mł/min	8300 RPM	60 mA	Plastic	60 °C	60 °C	-10 °C	-10 °C	Speed Sensor (Tach)	32 dB	Sleeve	Tubeaxial	6 VDC	13.8 VDC	12 VDC		Plastic	67.3 Pa	0.27 in H2O	23.13 g	0.051 lb
NMB TECHNOLOGIES 04015SS-12M-AT-00	15 mm	600 mW	3 Wire Leads	40 mm	Square	40 mm	6.4 CFM	0.179 mł/min	7300 RPM	50 mA	Aluminum	70 °C	70 °C	-10 °C	-10 °C	Auto Restart Speed Sensor (Tach)	29 dB(A)	Sleeve	Tubeaxial	6 VDC	13.8 VDC	12 VDC	40000 Hrs	Plastic	52.3 Pa	0.21 in H2O
NMB TECHNOLOGIES 04015SS-12L-AL-00	15 mm	0.48 W	3 Wire Leads	40 mm	Square	40 mm	5.7 CFM	0.16 m³/min	6300 RPM	40 mA	Plastic	70 °C	70 °C	-10 °C	-10 °C	Auto Restart Locked Rotor Sensor	26 dB	Sleeve	Tubeaxial	6 VDC	13.8 VDC	12 VDC	40000 Hrs	Plastic
NMB TECHNOLOGIES 04015SS-12M-AL-00	15 mm	600 mW	3 Wire Leads	40 mm	Square	40 mm	6.4 CFM	0.179 mł/min	7300 RPM	50 mA	Plastic	70 °C	70 °C	-10 °C	-10 °C	Auto Restart Locked Rotor Sensor	29 dB(A)	Sleeve	Tubeaxial	6 VDC	13.8 VDC	12 VDC	40000 Hrs	Plastic	52.3 Pa	0.21 in H2O
NMB TECHNOLOGIES 04015SS-24L-AA-00	15 mm	600 mW	2 Wire Leads	40 mm	Square	40 mm	5.7 CFM	0.16 m³/min	6300 RPM	30 mA	Aluminum	70 °C	70 °C	-10 °C	-10 °C	Auto Restart	26 dB	Sleeve	Tubeaxial	10 VDC	27.6 VDC	24 VDC	40000 Hrs	Plastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 6.44
		10	$ 6.22
		25	$ 6.04
		50	$ 5.68
		100	$ 5.11
		360	$ 5.03
		720	$ 4.71
Newark	Each	1	$ 8.90
		5	$ 8.62
		10	$ 8.35
		25	$ 8.13
		50	$ 7.97
		100	$ 7.80

Description

General part information

04015SS Series

Fan Tubeaxial 24VDC Square - 40mm L x 40mm H Sleeve 5.7 CFM (0.160m³/min) 2 Wire Leads

Documents

Technical documentation and resources
