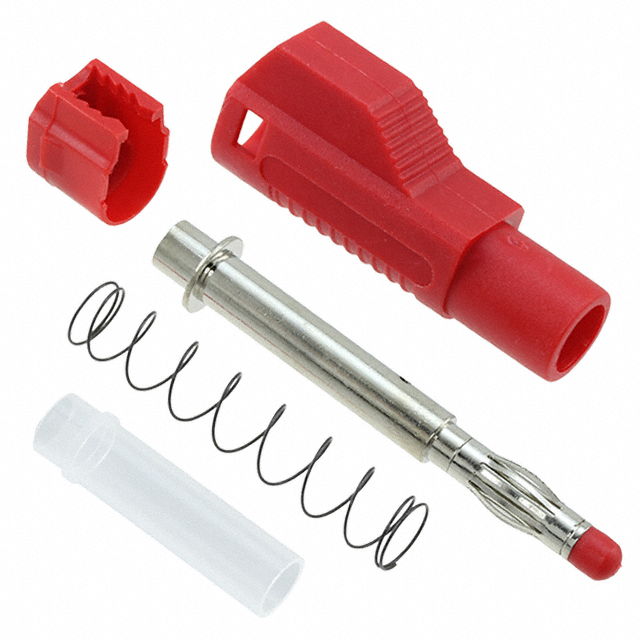

BU-3261410-2

Active

Mueller Electric Co

CONN, PLUG, 45A, 1KV, RED ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBU-3261410-x Data Sheet Datasheet +1

BU-3261410-2

Active

Mueller Electric Co

CONN, PLUG, 45A, 1KV, RED ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsBU-3261410-x Data Sheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BU-3261410-2

Body Material	Nylon, Polyamide (PA)
Color	Red
Contact Material	Brass, Beryllium Copper
Gender	Male
Insulation	Retractable, Sheathed
Mounting Type	Free Hanging (In-Line)
Plug/Mating Plug Diameter	Standard Banana
Termination	Solder
Type	Banana Plug
Wire Gauge [Max]	12 AWG
Wire Gauge [Min]	10 AWG

BU-32614 Series

Part	Body Material	Gender	Mounting Type	Contact Material	Color	Wire Gauge [Min]	Wire Gauge [Max]	Plug/Mating Plug Diameter	Insulation	Type	Termination
Mueller Electric Co BU-32614-4	Nylon Polyamide (PA)	Male	Free Hanging (In-Line)	Beryllium Copper Brass	Yellow	14 AWG	18 AWG	Standard Banana	Retractable Sheathed	Banana Plug Stackable	Solder
Mueller Electric Co BU-3261410-2	Nylon Polyamide (PA)	Male	Free Hanging (In-Line)	Beryllium Copper Brass	Red	10 AWG	12 AWG	Standard Banana	Retractable Sheathed	Banana Plug	Solder
Mueller Electric Co BU-3261410-6	Nylon Polyamide (PA)	Male	Free Hanging (In-Line)	Beryllium Copper Brass	Blue	10 AWG	12 AWG	Standard Banana	Retractable Sheathed	Banana Plug	Solder
Mueller Electric Co BU-32614-0	Nylon Polyamide (PA)	Male	Free Hanging (In-Line)	Beryllium Copper Brass	Black	14 AWG	18 AWG	Standard Banana	Retractable Sheathed	Banana Plug Stackable	Solder
Mueller Electric Co BU-32614-5	Nylon Polyamide (PA)	Male	Free Hanging (In-Line)	Beryllium Copper Brass	Green	14 AWG	18 AWG	Standard Banana	Retractable Sheathed	Banana Plug Stackable	Solder
Mueller Electric Co BU-32614-6	Nylon Polyamide (PA)	Male	Free Hanging (In-Line)	Beryllium Copper Brass	Blue	14 AWG	18 AWG	Standard Banana	Retractable Sheathed	Banana Plug Stackable	Solder
Mueller Electric Co BU-3261410-4	Nylon Polyamide (PA)	Male	Free Hanging (In-Line)	Beryllium Copper Brass	Yellow	10 AWG	12 AWG	Standard Banana	Retractable Sheathed	Banana Plug	Solder
Mueller Electric Co BU-32614-2	Nylon Polyamide (PA)	Male	Free Hanging (In-Line)	Beryllium Copper Brass	Red	14 AWG	18 AWG	Standard Banana	Retractable Sheathed	Banana Plug Stackable	Solder
Mueller Electric Co BU-3261410-9	Nylon Polyamide (PA)	Male	Free Hanging (In-Line)	Beryllium Copper Brass	White	10 AWG	12 AWG	Standard Banana	Retractable Sheathed	Banana Plug	Solder
Mueller Electric Co BU-3261410-0	Nylon Polyamide (PA)	Male	Free Hanging (In-Line)	Beryllium Copper Brass	Black	10 AWG	12 AWG	Standard Banana	Retractable Sheathed	Banana Plug	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.38
		10	$ 6.02
		100	$ 5.74
		500	$ 5.55
		1000	$ 5.46
Newark	Each	1	$ 10.33
		5	$ 9.54
		10	$ 8.96
		20	$ 8.75

Description

General part information

BU-32614 Series

Banana Plug Connector Standard Banana Solder Red

Documents

Technical documentation and resources

BU-3261410-x Data Sheet

Datasheet

Technical Data Sheet EN

Datasheet
