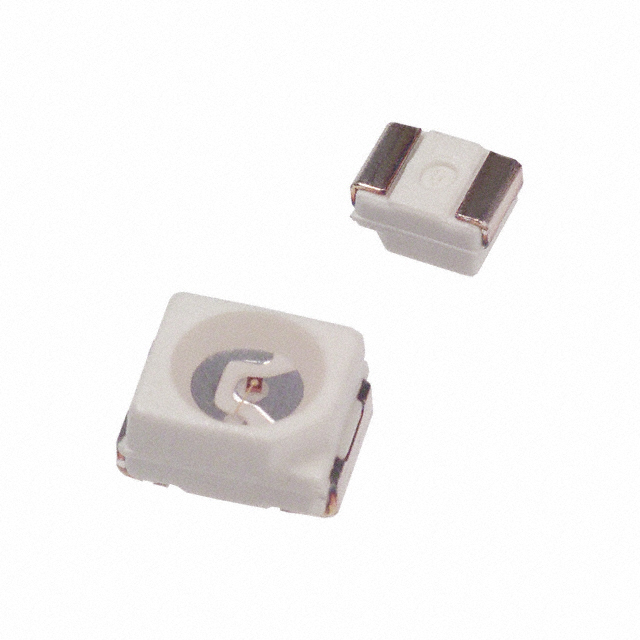

CMD67-21URC/TR8
ActiveVisual Communications Company - VCC
LED RED CLEAR SMD
Deep-Dive with AI
Search across all available documentation for this part.
CMD67-21URC/TR8
ActiveVisual Communications Company - VCC
LED RED CLEAR SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CMD67-21URC/TR8 |
|---|---|
| Color | Red |
| Configuration | Standard |
| Height (Max) [Max] [z] | 1.98 mm |
| Lens Size [diameter] | 2.39 mm |
| Lens Transparency | Clear |
| Millicandela Rating | 62 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 4-PLCC |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 1.7 V |
| Wavelength - Peak | 660 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.72 | |
| 10 | $ 1.09 | |||
| 100 | $ 0.80 | |||
| 500 | $ 0.74 | |||
| 1000 | $ 0.61 | |||
| Digi-Reel® | 1 | $ 1.72 | ||
| 10 | $ 1.09 | |||
| 100 | $ 0.80 | |||
| 500 | $ 0.74 | |||
| 1000 | $ 0.61 | |||
| Tape & Reel (TR) | 2000 | $ 0.58 | ||
| 6000 | $ 0.56 | |||
| 10000 | $ 0.55 | |||
Description
General part information
CMD67-21 Series
Red LED Indication - Discrete 1.7V 4-PLCC
