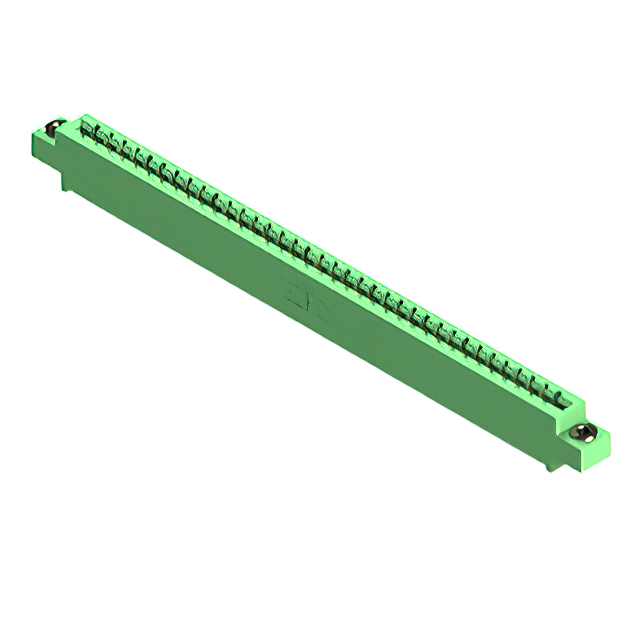

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 36 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
337-036-540-603
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 36 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 337-036-540-603 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Floating Bobbin |
| Flange Feature [diameter] | 2.95 mm |
| Flange Feature [diameter] | 0.116 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 36 |
| Number of Positions/Bay/Row [custom] | 36 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
337-036 Series
...
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination Rows | Number of Rows | Gender | Contact Type | Mounting Type | Number of Positions/Bay/Row [custom] | Number of Positions | Card Type | Read Out | Pitch [x] | Pitch [x] | Contact Finish | Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Flange Feature | Material - Insulation | Features | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -40 °C | 105 ░C | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Female | Cantilever | Through Hole | 36 | 36 | Non Specified - Single Edge | Single | 0.156 in | 3.96 mm | Gold | Solder | 10 Áin | 0.25 Ám | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | Polyester Thermoplastic | |||||
EDAC Inc. | -40 °C | 105 ░C | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Female | Cantilever | Through Hole | 36 | 36 | Non Specified - Single Edge | Single | 0.156 in | 3.96 mm | Gold | Solder Eyelet(s) | 10 Áin | 0.25 Ám | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Polyester Thermoplastic | Card Guides | ||||
EDAC Inc. | -40 °C | 105 ░C | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Female | Cantilever | Through Hole Right Angle | 18 | 36 | Non Specified - Dual Edge | Dual | 0.156 in | 3.96 mm | Gold | Wire Wrap | 10 Áin | 0.25 Ám | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Polyester Thermoplastic | Card Guides | ||||
EDAC Inc. | -40 °C | 105 ░C | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Female | Cantilever | Through Hole | 18 | 36 | Non Specified - Dual Edge | Dual | 0.156 in | 3.96 mm | Gold | Wire Wrap | 10 Áin | 0.25 Ám | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Polyester Thermoplastic | |||||
EDAC Inc. | -40 °C | 105 ░C | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Female | Cantilever | Through Hole Right Angle | 18 | 36 | Non Specified - Dual Edge | Dual | 0.156 in | 3.96 mm | Gold | Wire Wrap | 10 Áin | 0.25 Ám | Copper Alloy | Top Mount Opening Unthreaded | Polyester Thermoplastic | 0.156 in | 3.96 mm | |||
EDAC Inc. | -40 °C | 105 ░C | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Female | Cantilever | Through Hole | 18 | 36 | Non Specified - Dual Edge | Dual | 0.156 in | 3.96 mm | Gold | Wire Wrap | 10 Áin | 0.25 Ám | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Polyester Thermoplastic | |||||
EDAC Inc. | -40 °C | 105 ░C | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Female | Cantilever | Through Hole | 36 | 36 | Non Specified - Single Edge | Single | 0.156 in | 3.96 mm | Gold | Wire Wrap | 10 Áin | 0.25 Ám | Copper Alloy | Floating Bobbin Top Mount Opening | Polyester Thermoplastic | 0.116 in | 2.95 mm | |||
EDAC Inc. | -40 °C | 105 ░C | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Female | Cantilever | Through Hole | 36 | 36 | Non Specified - Single Edge | Single | 0.156 in | 3.96 mm | Gold | Wire Wrap | 10 Áin | 0.25 Ám | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Polyester Thermoplastic | Card Guides | ||||
EDAC Inc. | -40 °C | 105 ░C | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Female | Cantilever | Through Hole | 18 | 36 | Non Specified - Dual Edge | Dual | 0.156 in | 3.96 mm | Gold | Wire Wrap | 10 Áin | 0.25 Ám | Copper Alloy | Side Mount Opening Unthreaded | Polyester Thermoplastic | 3.25 mm | 0.128 in | |||
EDAC Inc. | -40 °C | 105 ░C | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Female | Cantilever | Through Hole | 36 | 36 | Non Specified - Single Edge | Single | 0.156 in | 3.96 mm | Gold | Solder Eyelet(s) | 10 Áin | 0.25 Ám | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Polyester Thermoplastic |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
337-036 Series
36 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
