RCLAMP3328P.TNT

Active

Semtech Corporation

8-LINE 3.3V 0.65PF 0.35R ESD SGP3810N9

Search across all available documentation for this part.

Active

Semtech Corporation

8-LINE 3.3V 0.65PF 0.35R ESD SGP3810N9

Technical Specifications

Parameters and characteristics for this part

Specification	RCLAMP3328P.TNT

Applications	HDMI
Capacitance @ Frequency	0.4 pF
Current - Peak Pulse (10/1000µs)	5 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C

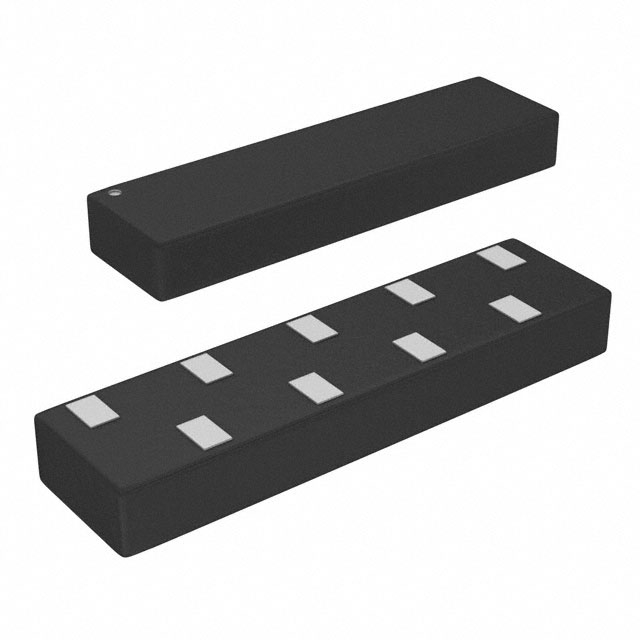

Package / Case	9-UDFN
Power - Peak Pulse	75 W
Power Line Protection	True
Supplier Device Package	SGP3810N9
Type	Steering
Unidirectional Channels [custom]	8
Voltage - Breakdown (Min) [Min]	3.8 V
Voltage - Clamping (Max) @ Ipp [Max]	10.5 V
Voltage - Reverse Standoff (Typ)	3.3 V

Part	Unidirectional Channels [custom]	Voltage - Reverse Standoff (Typ)	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Clamping (Max) @ Ipp [Max]	Power Line Protection	Power - Peak Pulse	Capacitance @ Frequency	Applications	Voltage - Breakdown (Min) [Min]	Current - Peak Pulse (10/1000µs)	Package / Case	Type	Mounting Type
Semtech Corporation RCLAMP3328P.TZT	8	3.3 V	SGP3810N9	125 ¯C	-55 °C	10.5 V		75 W	0.4 pF	HDMI	3.8 V	5 A	9-UDFN	Steering	Surface Mount
Semtech Corporation RCLAMP3328P.TNT	8	3.3 V	SGP3810N9	125 ¯C	-55 °C	10.5 V		75 W	0.4 pF	HDMI	3.8 V	5 A	9-UDFN	Steering	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10.5V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount SGP3810N9
