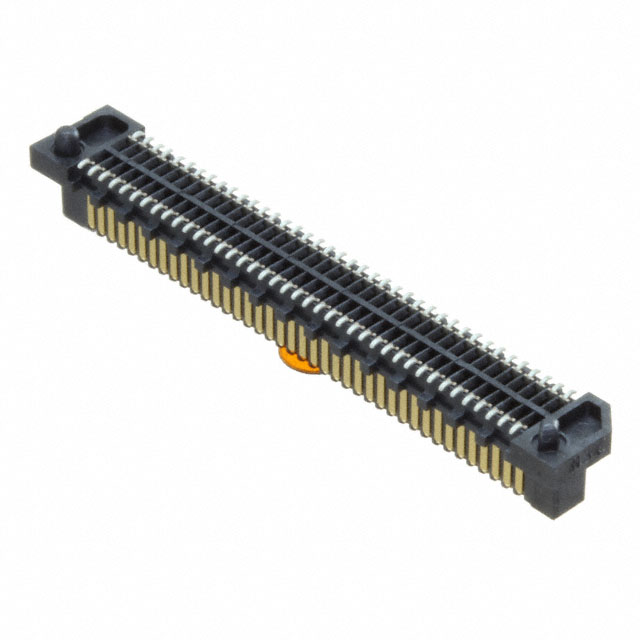

ER8-80P-0.8SV-2H

Active

Hirose Electric USA, Inc.

[FUNCTIONMAX ] PCIE GEN.4 HIGH SPEED TRANSMISSION (16+GBPS), 0.8MM PITCH, BOARD-TO-BOARD CONNECTORS ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

[FUNCTIONMAX ] PCIE GEN.4 HIGH SPEED TRANSMISSION (16+GBPS), 0.8MM PITCH, BOARD-TO-BOARD CONNECTORS ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	ER8-80P-0.8SV-2H

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Board Guide
Height Above Board	0.234 in
Height Above Board	5.95 mm
Mated Stacking Heights	7 mm, 9 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Pitch [x]	Pitch [x]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Mated Stacking Heights	Height Above Board	Height Above Board	Connector Type	Mounting Type	Number of Positions	Features
Hirose Electric USA, Inc. ER8-80P-0.8SV-2H	0.8 mm	0.031 in	Gold	0.76 Ám	30 Áin	2	7 mm 9 mm	0.234 in	5.95 mm	Header Center Strip Contacts	Surface Mount	80	Board Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

80 Position Connector Header, Center Strip Contacts Surface Mount Gold
