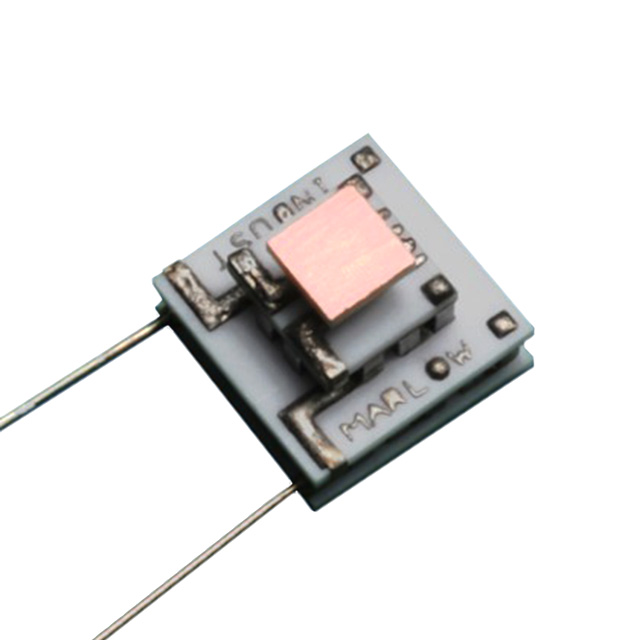

NL3021T-01AC

Active

Marlow Industries, Inc.

MULTISTAGE TEM 6.6X6.6X5.38MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

MULTISTAGE TEM 6.6X6.6X5.38MM

Technical Specifications

Parameters and characteristics for this part

Specification	NL3021T-01AC

Current - Max [Max]	1.3 A
Delta Tmax @ Th	96 °C
Features	Exterior Metallization (Both Sides), Lead Wires
Height [z]	5.38 mm
Number of Stages	3
Qmax @ Th	0.3 W
Resistance	1.42 Ohms
Size / Dimension [x]	6.6 mm
Size / Dimension [y]	6.6 mm
Voltage - Max [Max]	1.9 V

Part	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Max [Max]	Delta Tmax @ Th	Features	Number of Stages	Current - Max [Max]	Qmax @ Th	Resistance
Marlow Industries, Inc. NL3021T-01AC	5.38 mm	6.6 mm	6.6 mm	1.9 V	96 °C	Exterior Metallization (Both Sides) Lead Wires	3	1.3 A	0.3 W	1.42 Ohms
Marlow Industries, Inc. NL3021T-03AC	5.38 mm	6.6 mm	6.6 mm	1.9 V	96 °C	Lead Wires	3	1.3 A	0.3 W	1.42 Ohms
Marlow Industries, Inc. NL3021T-02AC	5.38 mm	6.6 mm	6.6 mm	1.9 V	96 °C	Exterior Metallization Lead Wires	3	1.3 A	0.3 W	1.42 Ohms
Marlow Industries, Inc. NL3021T-04AC	5.38 mm	6.6 mm	6.6 mm	1.9 V	96 °C		3	1.3 A	0.3 W	1.42 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 0.3W @ 27°C 1.3 A 85°C
