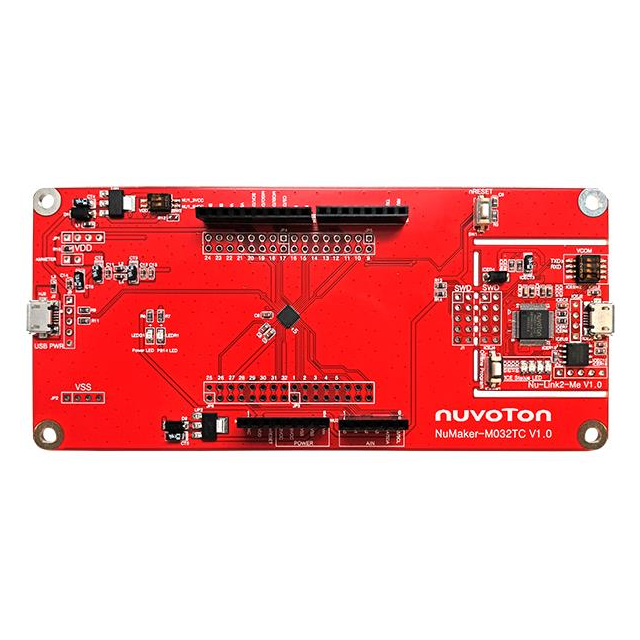

NK-M032TC
ActiveNuvoton Technology Corporation
NUMAKER-M032TC EVAL BRD
Deep-Dive with AI
Search across all available documentation for this part.
NK-M032TC
ActiveNuvoton Technology Corporation
NUMAKER-M032TC EVAL BRD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NK-M032TC |
|---|---|
| Board Type | Evaluation Platform |
| Contents | Board(s) |
| Core Processor | ARM® Cortex®-M0 |
| Interconnect System | Arduino R3 Shield |
| Mounting Type | Fixed |
| Platform | NuMaker |
| Type | MCU 32-Bit |
| Utilized IC / Part | M032TC1AE |
M032 Series
| Part | Speed | Number of I/O | Core Processor | RAM Size | Operating Temperature [Max] | Operating Temperature [Min] | Core Size | Oscillator Type | Supplier Device Package | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Program Memory Size | Connectivity | Peripherals | Mounting Type | Program Memory Type | Data Converters | RAM Size | Package / Case | Data Converters | Data Converters [custom] | Type | Interconnect System | Platform | Utilized IC / Part | Contents | Board Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Nuvoton Technology Corporation | 48 MHz | 23 | ARM® Cortex®-M0 | 4K x 8 | 105 °C | -40 °C | 32-Bit Single-Core | Internal | 33-QFN (4x4) | 1.8 V | 3.6 V | 32 KB | EBI/EMI I2C SPI UART/USART USB | Brown-out Detect/Reset LVD POR PWM WDT | Surface Mount | FLASH | A/D 10x12b SAR | ||||||||||
Nuvoton Technology Corporation | 48 MHz | ARM® Cortex®-M0 | 105 °C | -40 °C | 32-Bit Single-Core | Internal | 48-LQFP (7x7) | 1.8 V | 3.6 V | 128 KB | EBI/EMI I2C SPI UART/USART USB | Brown-out Detect/Reset LVD POR PWM WDT | Surface Mount | FLASH | A/D 12x12b SAR | 16 K | 48-LQFP | ||||||||||
Nuvoton Technology Corporation | 48 MHz | 107 | ARM® Cortex®-M0 | 105 °C | -40 °C | 32-Bit | Internal | 128-LQFP (14x14) | 1.8 V | 3.6 V | 256 KB | EBI/EMI I2C SPI UART/USART USB | Brown-out Detect/Reset I2S LVD POR PWM WDT | Surface Mount | FLASH | A/D 7x12b SAR | 64 K | 128-LQFP | |||||||||
Nuvoton Technology Corporation | 48 MHz | 23 | ARM® Cortex®-M0 | 105 °C | -40 °C | 32-Bit Single-Core | Internal | 33-QFN (4x4) | 1.8 V | 3.6 V | 64 KB | SPI UART/USART USB | Brown-out Detect/Reset LVD POR WDT | Surface Mount | FLASH | A/D 10x12b SAR | 8 K | 32-VFQFN Exposed Pad | |||||||||
Nuvoton Technology Corporation | 72 MHz | ARM® Cortex®-M0 | 105 °C | -40 °C | 32-Bit Single-Core | Internal | 48-LQFP (7x7) | 2 V | 3.6 V | 256 KB | EBI/EMI I2C SPI UART/USART USB | Brown-out Detect/Reset LVD POR PWM WDT | Surface Mount | FLASH | A/D 12x12b SAR | 64 K | 48-LQFP | ||||||||||
Nuvoton Technology Corporation | 48 MHz | ARM® Cortex®-M0 | 105 °C | -40 °C | 32-Bit Single-Core | Internal | 48-LQFP (7x7) | 1.8 V | 3.6 V | 64 KB | SPI UART/USART USB | Brown-out Detect/Reset LVD POR WDT | Surface Mount | FLASH | A/D 12x12b SAR | 8 K | 48-LQFP | ||||||||||
Nuvoton Technology Corporation | 48 MHz | 51 | ARM® Cortex®-M0 | 105 °C | -40 °C | 32-Bit Single-Core | Internal | 64-LQFP (7x7) | 1.8 V | 3.6 V | 128 KB | EBI/EMI I2C SPI UART/USART USB | Brown-out Detect/Reset LVD POR PWM WDT | Surface Mount | FLASH | SAR | 16 K | 64-LQFP | 12 b | 16 | |||||||
Nuvoton Technology Corporation | ARM® Cortex®-M0 | Fixed | MCU 32-Bit | Arduino R3 Shield | NuMaker | M032KG8AE | Board(s) | Evaluation Platform | |||||||||||||||||||
Nuvoton Technology Corporation | 72 MHz | ARM® Cortex®-M0 | 105 °C | -40 °C | 32-Bit Single-Core | Internal | 48-LQFP (7x7) | 2 V | 3.6 V | 256 KB | EBI/EMI I2C SPI UART/USART USB | Brown-out Detect/Reset LVD POR PWM WDT | Surface Mount | FLASH | A/D 12x12b SAR | 48-LQFP | |||||||||||
Nuvoton Technology Corporation | ARM® Cortex®-M0 | Fixed | MCU 32-Bit | Arduino R3 Shield | NuMaker | M032TC1AE | Board(s) | Evaluation Platform |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 32.36 | |
Description
General part information
M032 Series
M032TC1AE NuMaker NuMicro® ARM® Cortex®-M0 MCU 32-Bit Embedded Evaluation Board
Documents
Technical documentation and resources
No documents available
