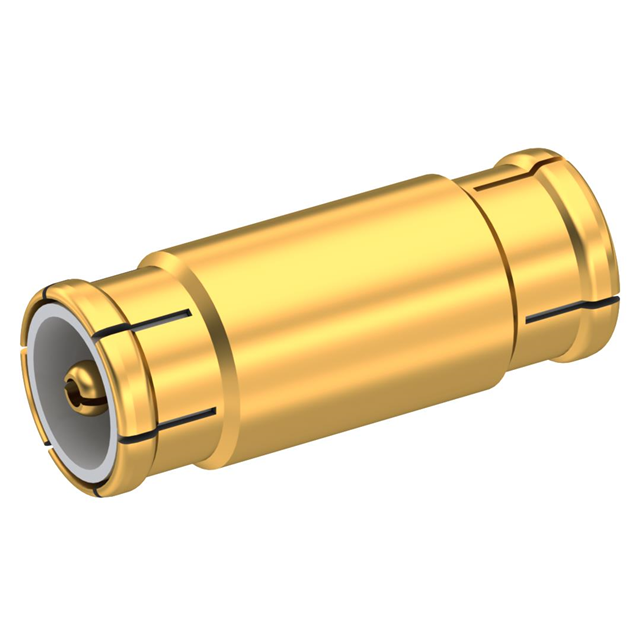

MMBX / MALE-MALE ADAPTER BOARD T

Search across all available documentation for this part.

Active

Radiall USA, Inc.

MMBX / MALE-MALE ADAPTER BOARD T

Technical Specifications

Parameters and characteristics for this part

Specification	R223703020

Adapter Series	MMBX to MMBX
Adapter Type	Plug to Plug
Body Finish	Gold
Body Material	Bronze
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Same Series
Convert From (Adapter End)	MMBX Plug, Male Pin
Convert To (Adapter End)	MMBX Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	12.4 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Center Contact Material	Body Material	Mounting Type	Center Contact Plating	Body Finish	Frequency - Max [Max]	Center Gender	Adapter Series	Dielectric Material	Conversion Type	Operating Temperature [Max]	Operating Temperature [Min]	Adapter Type	Impedance	Fastening Type	Convert From (Adapter End)	Convert To (Adapter End)	Style
Radiall USA, Inc. R223703080	Beryllium Copper	Beryllium Copper	Free Hanging (In-Line)	Gold	Gold	12.4 GHz	Male to Male	MMBX to MMBX	Polytetrafluoroethylene (PTFE)	Same Series	155 °C	-55 °C	Plug to Plug	50 Ohms	Snap-On	MMBX Plug Male Pin	Male Pin MMBX Plug	Straight
Radiall USA, Inc. R223703180	Beryllium Copper	Beryllium Copper	Free Hanging (In-Line)	Gold	Gold	12.4 GHz	Male to Male	MMBX to MMBX	Polytetrafluoroethylene (PTFE)	Same Series	155 °C	-55 °C	Plug to Plug	50 Ohms	Snap-On	MMBX Plug Male Pin	Male Pin MMBX Plug	Straight
Radiall USA, Inc. R223703020	Beryllium Copper	Bronze	Free Hanging (In-Line)	Gold	Gold	12.4 GHz	Male to Male	MMBX to MMBX	Polytetrafluoroethylene (PTFE)	Same Series	155 °C	-55 °C	Plug to Plug	50 Ohms	Snap-On	MMBX Plug Male Pin	Male Pin MMBX Plug	Straight
Radiall USA, Inc. R223703040	Beryllium Copper	Bronze	Free Hanging (In-Line)	Gold	Gold	12.4 GHz	Male to Male	MMBX to MMBX	Polytetrafluoroethylene (PTFE)	Same Series	155 °C	-55 °C	Plug to Plug	50 Ohms	Snap-On	MMBX Plug Male Pin	Male Pin MMBX Plug	Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector MMBX Plug, Male Pin To MMBX Plug, Male Pin 50 Ohms
