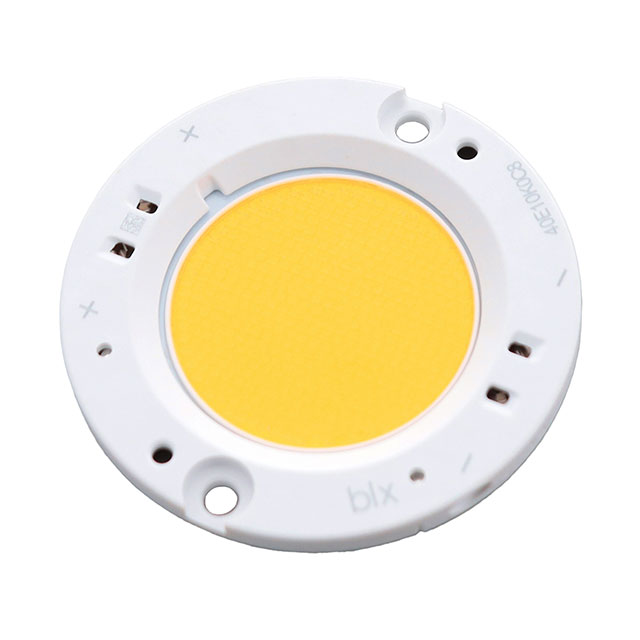

BXRC-40E10K0-C-83-SE

Active

BRIDGELUX

LED COB VERO SE 29C WH RND 4000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRC-40E10K0-C-83-SE

Active

BRIDGELUX

LED COB VERO SE 29C WH RND 4000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BXRC-40E10K0-C-83-SE

CCT (K)	4000 K
Color	Neutral, White
Configuration	Round
CRI (Color Rendering Index)	80
Current - Max [Max]	4.75 A
Current - Test	1.3 A
Height [z]	3.6 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	29.1 mm
Lumens/Watt @ Current - Test	190 lm/W
Luminous Flux @ Current/Temperature	16474 lm
Size / Dimension [diameter]	49.2 mm
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	66.7 V

BXRC-40 Series

...

Part	Current - Test	Lumens/Watt @ Current - Test	Height [z]	Current - Max [Max]	Color	Type	Luminous Flux @ Current/Temperature	Size / Dimension [diameter]	Light Emitting Surface (LES) [diameter]	Lens Type	CRI (Color Rendering Index)	CCT (K)	Voltage - Forward (Vf) (Typ)	Configuration	Viewing Angle	Temperature - Test	Features
BRIDGELUX BXRC-40A10K1-B-73-SE	1.8 A	138 lm/W	3.6 mm	3.6 A	Neutral White	Chip On Board (COB)	12917 lm	49.2 mm	29.2 mm	Flat	93	4000 K	52 V	Round	120 °
BRIDGELUX BXRC-40E2000-B-73-SE	450 mA	145 lm/W	3.6 mm	900 mA	Neutral White	Chip On Board (COB)	2219 lm	36.2 mm	13.4 mm	Flat	80	4000 K	34.1 V	Round	120 °	85 °C
BRIDGELUX BXRC-40E10K0-C-83	1.3 A	190 lm/W	1.9 mm	4.75 A	Neutral White	Chip On Board (COB)	16515 lm	49.2 mm	29.1 mm	Flat	80	4000 K	66.7 V	Round	120 °
BRIDGELUX BXRC-40G10K0-L-02	2.1 A	112 lm/W	1.9 mm	4.2 A	Neutral White	Chip On Board (COB)	9060 lm	49.2 mm	29.2 mm	Flat	90	4000 K	38.6 V	Round	120 °		With Connector
BRIDGELUX BXRC-40E2000-C-83-SE	500 mA	180 lm/W	3.6 mm	1.75 A	Neutral White	Chip On Board (COB)	3006 lm	36.2 mm	13.3 mm	Flat	80	4000 K	33.4 V	Round	120 °
BRIDGELUX BXRC-40E4000-C-72-SE		151 lm/W	3.6 mm	2.1 A	Neutral White	Chip On Board (COB)	5973 lm	36.2 mm	18.4 mm	Flat	80	4000 K	33.9 V	Round	120 °	85 °C
BRIDGELUX BXRC-40G2000-C-02	500 mA	111 lm/W	1.9 mm	1.05 A	Neutral White	Chip On Board (COB)	1810 lm	36.2 mm	13.2 mm	Flat	90	4000 K	32.5 V	Round	120 °		With Connector
BRIDGELUX BXRC-40G4000-F-22	1.05 A	121 lm/W	1.9 mm	2.1 A	Neutral White	Chip On Board (COB)	3750 lm	36.2 mm	18.4 mm	Flat	90	4000 K	29.5 V	Round	120 °		With Connector
BRIDGELUX BXRC-40E10K0-C-83-SE	1.3 A	190 lm/W	3.6 mm	4.75 A	Neutral White	Chip On Board (COB)	16474 lm	49.2 mm	29.1 mm	Flat	80	4000 K	66.7 V	Round	120 °
BRIDGELUX BXRC-40G4000-B-73-SE	900 mA	125 lm/W	3.6 mm	1.8 A	Neutral White	Chip On Board (COB)	3825 lm	36.2 mm	18.4 mm	Flat	90	4000 K	34.1 V	Round	120 °	85 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 28.67
		10	$ 22.79
		80	$ 22.59

Description

General part information

BXRC-40 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Gen 8 Vero® SE 29 Array White, Neutral Round
