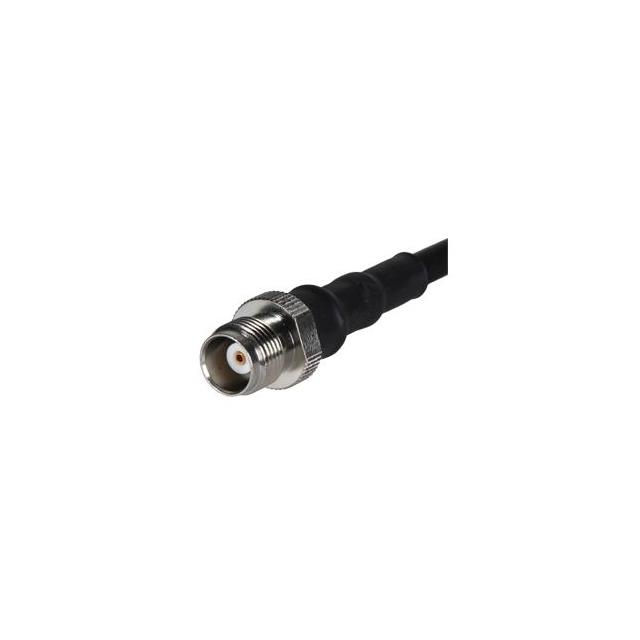

21_TNC-50-4-16/133_NE

Active

Huber+Suhner, Inc.

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

21_TNC-50-4-16/133_NE

Technical Specifications

Parameters and characteristics for this part

Specification	21_TNC-50-4-16/133_NE

Body Finish	White Bronze
Body Material	Brass
Cable Group	LMR-240
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Mating Cycles	Shield Termination	Contact Termination	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Cable Group	Mounting Type	Frequency - Max [Max]	Body Finish	Housing Color	Connector Style	Center Contact Plating	Center Contact Material	Number of Ports	Connector Type	Dielectric Material	Voltage Rating
Huber+Suhner, Inc. 21_TNC-50-4-16/133_NE	500	Crimp	Crimp	Brass	-65 ░C	165 °C	50 Ohms	LMR-240	Free Hanging (In-Line)	11 GHz	White Bronze	Silver	TNC	Gold	Beryllium Copper	1	Female Socket Jack	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	500 V
Huber+Suhner, Inc. 21_TNC-50-3-31/133_NE	500	Crimp	Crimp	Brass	-65 ░C	165 °C	50 Ohms	RG-58	Free Hanging (In-Line)	11 GHz	White Bronze	Silver	TNC	Gold	Beryllium Copper	1	Female Socket Jack	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	500 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TNC Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
