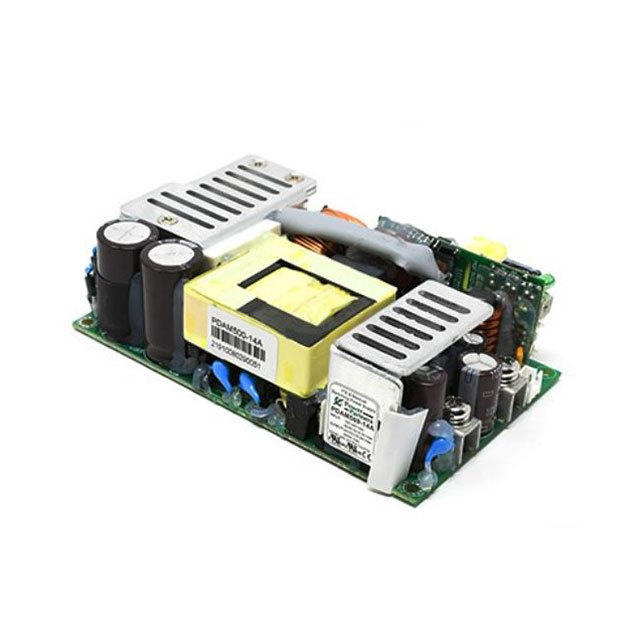

PDAM500-14A

Active

TT Electronics/Power Partners Inc.

AC/DC CONVERTER 24V 240W

Search across all available documentation for this part.

Active

TT Electronics/Power Partners Inc.

AC/DC CONVERTER 24V 240W

Technical Specifications

Parameters and characteristics for this part

Specification	PDAM500-14A

Applications	ITE (Commercial), Medical
Approval Agency	CE, cURus
Current - Output 1	20.8 A
Efficiency	92 %
Features	PFC, Universal Input, Standby Output, Remote On/Off
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	499 W
Power (Watts)	240 W
Size / Dimension [x]	127.8 mm
Size / Dimension [x]	5.03 in
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	35.1 mm
Size / Dimension [z]	1.38 in
Standard Number	60950-1, 60601-1, 62368-1
Type	Open Frame
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	85 VAC, 120 VDC
Voltage - Isolation	4000 V
Voltage - Output 1	24 V

Part	Number of Outputs	Minimum Load Required	Voltage - Input [Min]	Voltage - Input [Max]	Standard Number	Power (Watts)	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Applications	Mounting Type	Voltage - Isolation	Approval Agency	Current - Output 1	Efficiency	Features	Voltage - Output 1
TT Electronics/Power Partners Inc. PDAM500-14A	1		85 VAC 120 VDC	264 VAC 370 VDC	60601-1 60950-1 62368-1	499 W	240 W	35.1 mm	3 "	1.38 in	127.8 mm	5.03 in	76.2 mm	70 °C	-30 °C	Open Frame	ITE (Commercial) Medical	Chassis Mount	4000 V	CE cURus	20.8 A	92 %	PFC Remote On/Off Standby Output Universal Input	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 24V 85 ~ 264 VAC, 120 ~ 370 VDC Input
