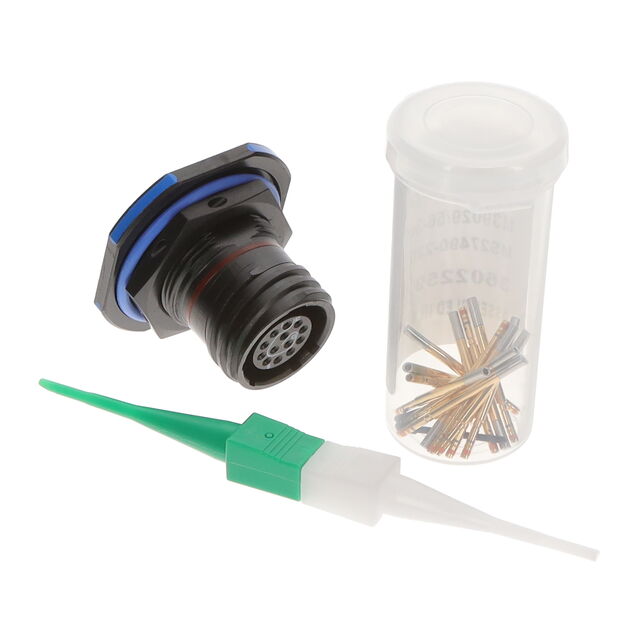

D38999/24ZB35SN

Active

Amphenol Aerospace Operations

JAM NUT RECEPTACLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/24ZB35SN

Active

Amphenol Aerospace Operations

JAM NUT RECEPTACLE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/24ZB35SN

Applications	Aviation, Marine, Military, Aerospace
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Grade	Military
Ingress Protection	IP67 - Dust Tight, Waterproof, Environment Resistant
Insert Material	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	13
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Black Zinc Nickel
Shell Material	Aluminum
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	11
Shell Size, MIL	B
Shielding	Shielded, Unshielded
Termination	Crimp

D38999/24ZB Series

Part	Ingress Protection	Contact Size	Type	Housing Color	Connector Type	Orientation	Grade	Shell Material	Note	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Number of Positions	Qualification	Shielding	Shell Size, MIL	Contact Shape	Contact Type	Shell Size - Insert	Color	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Insert Material	Primary Material	Current Rating (Amps)	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Contact Material	Termination	Contact Size
Amphenol Aerospace Operations D38999/24ZB98HA-LC	Environment Resistant	20	For Male Pins	Black	Receptacle Housing	A	Military	Aluminum	Contacts Not Included	Bulkhead - Front Side Nut	-65 ░C	347 °F	Zinc Nickel	6	MIL-DTL-38999 Series III	Shielded	B	Circular	Crimp	11-98
Amphenol Aerospace Operations D38999/24ZB98JA-LC	Environment Resistant	20	For Female Sockets	Black	Receptacle Housing	A	Military	Aluminum	Contacts Not Included	Bulkhead - Front Side Nut	-65 ░C	347 °F	Zinc Nickel	6	MIL-DTL-38999 Series III	Shielded	B	Circular	Crimp	11-98
Amphenol Aerospace Operations D38999/24ZB35SN	Environment Resistant IP67 - Dust Tight Waterproof				Receptacle Female Sockets	N	Military	Aluminum		Bulkhead - Front Side Nut	-65 ░C	347 °F	Black Zinc Nickel	13	MIL-DTL-38999 Series III	Shielded Unshielded	B				Black	Gold	1.27 µm	50 µin	Aerospace Aviation Marine Military	Thermoplastic	Metal	5 A	11	35	Copper Alloy	Crimp
Amphenol Aerospace Operations D38999/24ZB35BA	Environment Resistant		For Female Sockets	Black	Receptacle Housing	A	Military	Aluminum	Contacts Not Included	Bulkhead - Front Side Nut	-65 ░C	347 °F	Zinc Nickel	13	MIL-DTL-38999 Series III	Shielded	B	Circular	Crimp										11	35			22D
Amphenol Aerospace Operations D38999/24ZB2BA	Environment Resistant	16	For Female Sockets	Black	Receptacle Housing	A	Military	Aluminum	Contacts Not Included	Bulkhead - Front Side Nut	-65 ░C	347 °F	Zinc Nickel	2	MIL-DTL-38999 Series III	Shielded	B	Circular	Crimp	11-2
Amphenol Aerospace Operations D38999/24ZB2HA-LC	Environment Resistant	16	For Male Pins	Black	Receptacle Housing	A	Military	Aluminum	Contacts Not Included	Bulkhead - Front Side Nut	-65 ░C	347 °F	Zinc Nickel	2	MIL-DTL-38999 Series III	Shielded	B	Circular	Crimp	11-2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 231.90
		10	$ 209.47
	Bulk	1	$ 160.00
		10	$ 130.00
		25	$ 109.47
		50	$ 94.54
		100	$ 80.00

Description

General part information

D38999/24ZB Series

13 Position Circular Connector Receptacle, Female Sockets Crimp
