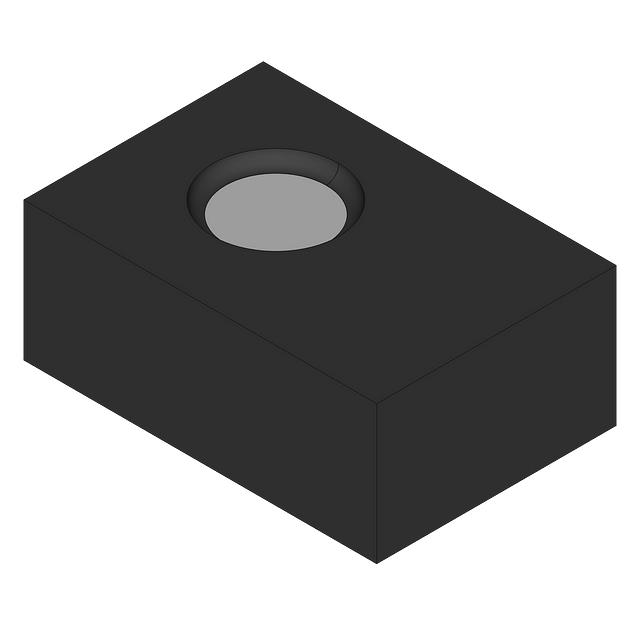

LM3677LEE-1.8/NOPB

Active

National Semiconductor

IC REG BUCK 1.8V 600MA 6USON

Search across all available documentation for this part.

Active

National Semiconductor

IC REG BUCK 1.8V 600MA 6USON

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]	Output Configuration	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Output (Min/Fixed)	Topology	Function	Frequency - Switching	Number of Outputs	Mounting Type	Output Type	Current - Output	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]
National Semiconductor LM3677LE-1.8/NOPB	6-LLP	1.5	2	Positive	5.5 V	2.7 V	1.8 V	Buck	Step-Down	3 MHz	1	Surface Mount	1.81 mOhm	600 mA	6-UFDFN	-30 °C	85 °C
National Semiconductor LM3677TL-1.2	5-DSBGA (1.5x1.2)			Positive	5.5 V	2.7 V	1.2 V	Buck	Step-Down	3 MHz	1	Surface Mount	1.81 mOhm	600 mA		-30 °C	85 °C
National Semiconductor LM3677TL-1.3/NOPB	5-DSBGA (1.5x1.2)			Positive	5.5 V	2.7 V	1.3 V	Buck	Step-Down	3 MHz	1	Surface Mount	1.81 mOhm	600 mA		-30 °C	85 °C
National Semiconductor LM3677LEE-1.8/NOPB	6-USON (2x1.5)			Positive	5.5 V	2.7 V	1.8 V	Buck	Step-Down	3 MHz	1	Surface Mount	1.81 mOhm	600 mA	6-UFDFN	-30 °C	85 °C
National Semiconductor LM3677TL-1.875/NOPB	5-DSBGA (1.41x1.08)			Positive	5.5 V	2.7 V	1.875 V	Buck	Step-Down	3 MHz	1	Surface Mount	1.81 mOhm	600 mA		-30 °C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buck Switching Regulator IC Positive Fixed 1.8V 1 Output 600mA 6-UFDFN

Technical documentation and resources

No documents available
