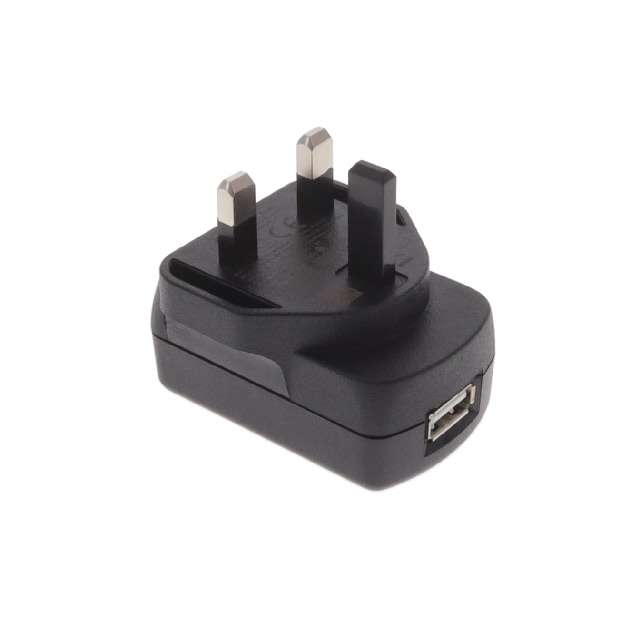

WR95A1500U53-F(R6B)

Active

GlobTek, Inc.

AC/DC WALL MNT ADAPTER 5.2V 7.8W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC WALL MNT ADAPTER 5.2V 7.8W

Technical Specifications

Parameters and characteristics for this part

Specification	WR95A1500U53-F(R6B)

Applications	ITE (Commercial)
Approval Agency	SIQ, UKRSepro, CE, EAC
Current - Output (Max) [Max]	1.5 A
Efficiency	Level VI
Form	Wall Mount (Class I)
Input Connector	BS 1363
Input Type	Fixed Blade
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Power (Watts)	7.8 W
Region Utilized	United Kingdom
Size / Dimension [x]	1.27 in
Size / Dimension [x]	32.2 mm
Size / Dimension [y]	1.27 in
Size / Dimension [y]	32.2 mm
Size / Dimension [z]	2.4 in
Size / Dimension [z]	60.9 mm
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5.2 V

Part	Region Utilized	Input Connector	Efficiency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max) [Max]	Power (Watts)	Form	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Applications	Approval Agency	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Input Type
GlobTek, Inc. WR95A1500U53-F(R6B)	United Kingdom	BS 1363	Level VI	1.27 in	1.27 in	2.4 in	32.2 mm	60.9 mm	32.2 mm	1.5 A	7.8 W	Wall Mount (Class I)	-10 °C	50 °C	ITE (Commercial)	CE EAC SIQ UKRSepro	5.2 V	90 VAC	264 VAC	Fixed Blade

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5.2V 7.8 W AC/DC External Wall Mount (Class I) Adapter Fixed Blade Input
