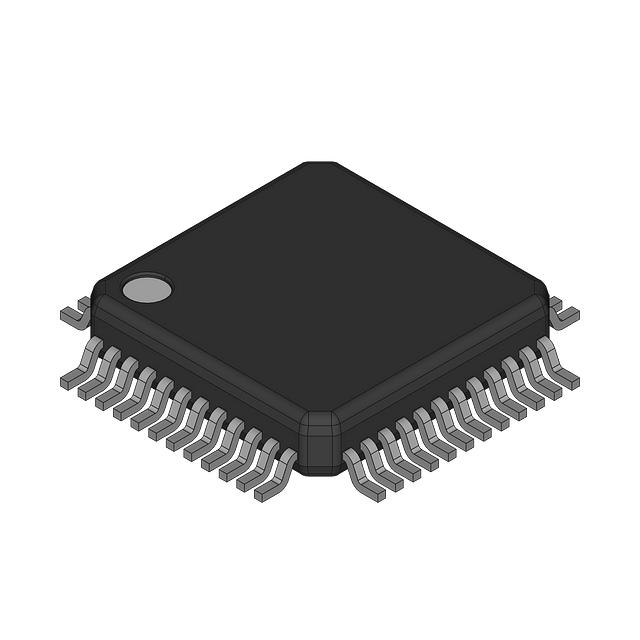

HI1178JCQ
ActiveHarris Corporation
IC DAC 8BIT A-OUT 48MQFP
Deep-Dive with AI
Search across all available documentation for this part.
HI1178JCQ
ActiveHarris Corporation
IC DAC 8BIT A-OUT 48MQFP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HI1178JCQ |
|---|---|
| Data Interface | Parallel |
| Differential Output | True |
| INL/DNL (LSB) | 2.5 LSB, 0.3 LSB |
| Mounting Type | Surface Mount |
| Number of Bits | 8 |
| Number of D/A Converters | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Current - Unbuffered |
| Package / Case | 48-BQFP |
| Reference Type | External |
| Supplier Device Package | 48-MQFP (12x12) |
| Voltage - Supply, Analog | 5 V |
| Voltage - Supply, Digital | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 88 | $ 3.41 | |
Description
General part information
HI1178 Series
8 Bit Digital to Analog Converter 3 48-MQFP (12x12)
Documents
Technical documentation and resources
No documents available
