Q2-F2XYG-3/64-08-QB6IN-40

Active

Qualtek

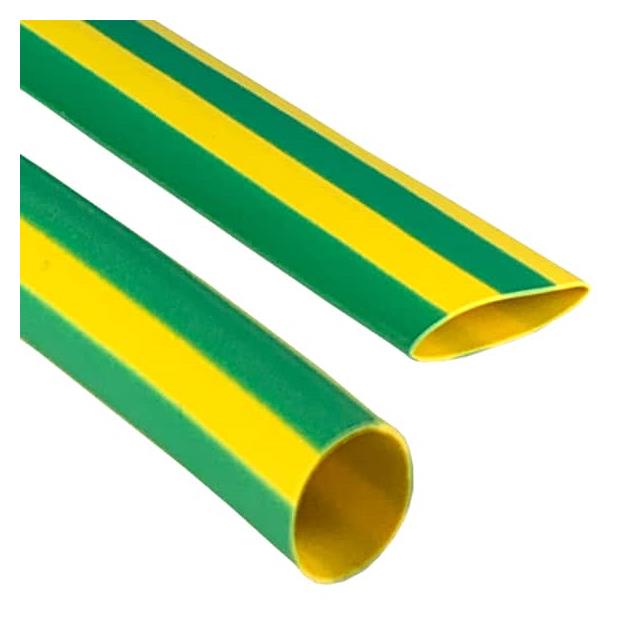

HEATSHRINK 3/64"-6" YLLW/GREEN

Search across all available documentation for this part.

Active

Qualtek

HEATSHRINK 3/64"-6" YLLW/GREEN

Technical Specifications

Parameters and characteristics for this part

Specification	Q2-F2XYG-3/64-08-QB6IN-40

Color	Green, Yellow
Features	Flame Retardant
Inner Diameter - Recovered [diameter]	0.023 in
Inner Diameter - Recovered [diameter]	0.58 mm
Inner Diameter - Supplied [diameter]	1.17 mm
Inner Diameter - Supplied [diameter]	0.046 in
Length	152.4 mm
Length	6 "
Length	0.5 '
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.013 in
Recovered Wall Thickness	0.33 mm
Shelf Life	144 Months
Shrink Temperature	70 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Part	Recovered Wall Thickness	Recovered Wall Thickness	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Features	Shrink Temperature	Length	Length	Length	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Color	Type	Material	Operating Temperature [Max]	Operating Temperature [Min]	Shelf Life	Shrinkage Ratio	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Length [x]	Length [x]
Qualtek Q2-F2XYG-2-08-QB6IN-3	1.02 mm	0.04 in	-50 °F -10 °C	40 °C	Flame Retardant	70 °C	152.4 mm	6 "	0.5 '	50.8 mm	2 in	Green Yellow	Tubing Flexible	Polyolefin (PO)	135 °C	-55 °C	144 Months	2 to 1	25.4 mm	1 in
Qualtek Q2-F2XYG-3/64-08-QB6IN-40	0.33 mm	0.013 in	-50 °F -10 °C	40 °C	Flame Retardant	70 °C	152.4 mm	6 "	0.5 '	1.17 mm	0.046 in	Green Yellow	Tubing Flexible	Polyolefin (PO)	135 °C	-55 °C	144 Months	2 to 1	0.023 in		0.58 mm
Qualtek Q2-F2XYG-38-08-MS100FT	0.56 mm	0.022 "	-50 °F -10 °C	40 °C	Flame Retardant	70 °C				9.53 mm	0.375 in	Green Yellow	Tubing Flexible	Polyolefin (PO)	135 °C	-55 °C	144 Months	2 to 1	4.75 mm	0.187 in		30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Heat Shrink Tubing, Flexible 0.046" (1.17mm) 2 to 1 Yellow, Green 0.500' (152.40mm, 6.00")
