EPL.0S.250.CLN

Active

LEMO

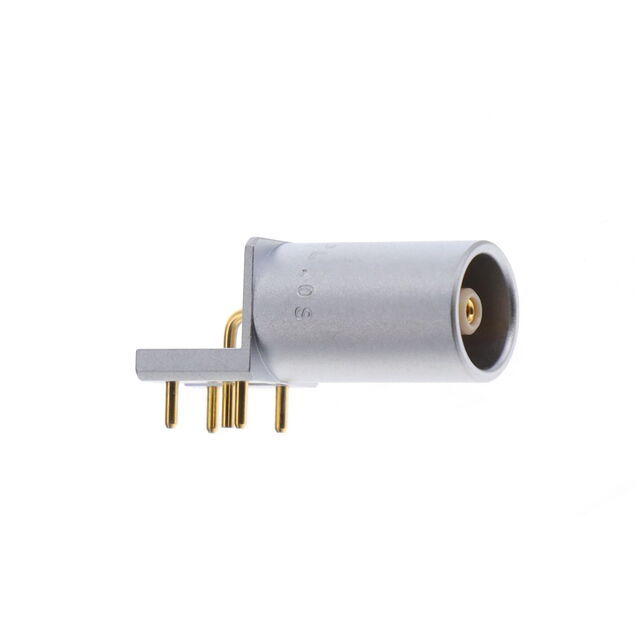

CONN COAX RCPT R/A 50 OHM PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Coaxial, Triaxial, Multi Catalog

EPL.0S.250.CLN

Active

LEMO

CONN COAX RCPT R/A 50 OHM PCB

Deep-Dive with AI

DocumentsDatasheet Coaxial, Triaxial, Multi Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EPL.0S.250.CLN

Body Finish	Chrome
Body Material	Brass
Cable Group	174A, 188A, 196A, 316B, 178B, RG-122, 174
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	Coaxial
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polyetheretherketone (PEEK)
Fastening Type	Push-Pull
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP50
Mating Cycles	1000
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder

EPL.0S Series

Part	Contact Finish - Mating	Orientation	Connector Type	Shell Material	Shell Finish	Contact Material	Termination	Primary Material	Fastening Type	Number of Positions	Insert Material	Shell Size - Insert	Mounting Type	Ingress Protection	Features	Current Rating (Amps)	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Connector Style	Cable Group	Mating Cycles	Body Finish	Contact Termination	Center Contact Plating	Impedance	Center Contact Material	Number of Ports	Housing Color	Shield Termination	Body Material	Material Flammability Rating
LEMO EPL.0S.116.DTL	Gold	Keyed	Receptacle Female Sockets	Brass	Gold	Bronze	Solder	Metal	Push-Pull	1	Polytetrafluoroethylene (PTFE)	116	Through Hole Right Angle	IP50	Ground	12 A	Shielded	-55 °C	250 °C
LEMO EPL.0S.250.CTN			Female Socket Receptacle						Push-Pull				Through Hole Right Angle	IP50				-55 °C	250 °C	Polytetrafluoroethylene (PTFE)	Coaxial	174 174A 178B 188A 196A 316B RG-122	1000	Chrome	Solder	Gold	50 Ohms	Beryllium Copper	1	Silver	Solder	Brass
LEMO EPL.0S.250.CLN			Female Socket Receptacle						Push-Pull				Through Hole Right Angle	IP50				-55 °C	250 °C	Polyetheretherketone (PEEK)	Coaxial	174 174A 178B 188A 196A 316B RG-122	1000	Chrome	Solder	Gold	50 Ohms	Beryllium Copper	1	Silver	Solder	Brass
LEMO EPL.0S.302.HLN	Gold	Keyed	Female Sockets Male Pins Receptacle	Brass and Polyphenylene Sulfide (PPS)	Nickel	Brass Bronze	Solder	Metal	Push-Pull	2	Polyetheretherketone (PEEK)	302	Through Hole Right Angle	IP50	Ground	4.5 A	Shielded	-55 °C	250 °C														UL94 V-0
LEMO EPL.0S.304.HLN	Gold	Keyed	Female Sockets Male Pins Receptacle	Brass and Polyphenylene Sulfide (PPS)	Nickel	Brass Bronze	Solder	Metal	Push-Pull	4	Polyetheretherketone (PEEK)	304	Through Hole Right Angle	IP50	Ground	4.5 A	Shielded	-55 °C	250 °C														UL94 V-0
LEMO EPL.0S.650.NTN			Female Socket Receptacle						Push-Pull				Through Hole Right Angle	IP50				-55 °C	250 °C	Polytetrafluoroethylene (PTFE)	Triaxial	178 RG-174	1000	Nickel	Solder	Gold	50 Ohms	Brass	1	Silver	Solder	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 30.72
		10	$ 26.90
		25	$ 25.74
		50	$ 24.91
		100	$ 24.08
		250	$ 22.75

Description

General part information

EPL.0S Series

Coaxial Connector Receptacle, Female Socket 50 Ohms Through Hole, Right Angle Solder
