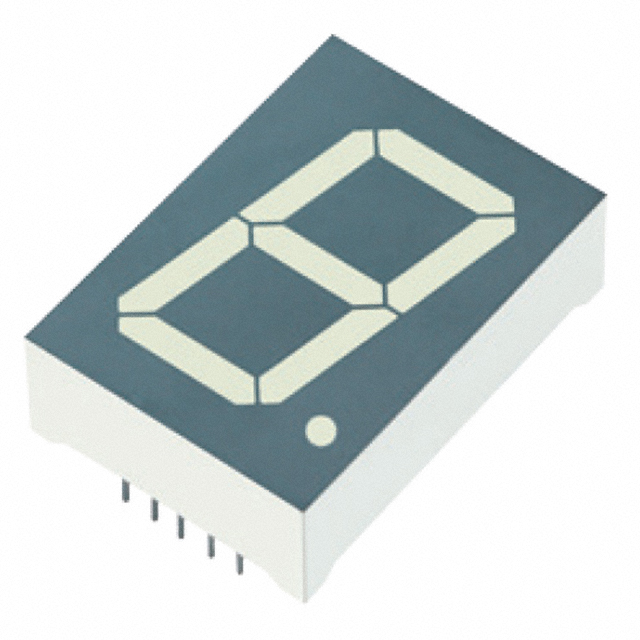

XDVG25A

Active

SunLED

DISPLAY 7-SEG 1" SGL GREEN 10DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XDVG25A

Active

SunLED

DISPLAY 7-SEG 1" SGL GREEN 10DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XDVG25A

Color	Green
Common Pin	Common Anode
Current - Test	10 mA
Digit/Alpha Size	1 in
Digit/Alpha Size	25.4 mm
Display Type	7-Segment
Millicandela Rating	33 mcd
Number of Characters [custom]	1
Package / Case	10-DIP
Package / Case [x]	1.197 in
Package / Case [y]	30.4 mm
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	1.339 "
Size / Dimension [x]	34 mm
Size / Dimension [y]	24 mm
Size / Dimension [y]	0.945 in
Size / Dimension [z]	10.5 mm
Size / Dimension [z]	0.413 "
Voltage - Forward (Vf) (Typ)	4 V

XDVG25 Series

Part	Display Type	Digit/Alpha Size	Digit/Alpha Size	Current - Test	Package / Case [y]	Package / Case	Package / Case [x]	Common Pin	Power Dissipation (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Color	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Number of Characters [custom]
SunLED XDVG25A	7-Segment	1 in	25.4 mm	10 mA	30.4 mm	10-DIP	1.197 in	Common Anode	75 mw	24 mm	10.5 mm	1.339 "	0.413 "	0.945 in	34 mm	Green	4 V	33 mcd	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	100	$ 1.87

Description

General part information

XDVG25 Series

Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Anode 4V 10mA 1.339" H x 0.945" W x 0.413" D (34.00mm x 24.00mm x 10.50mm) 10-DIP (1.197", 30.40mm)
