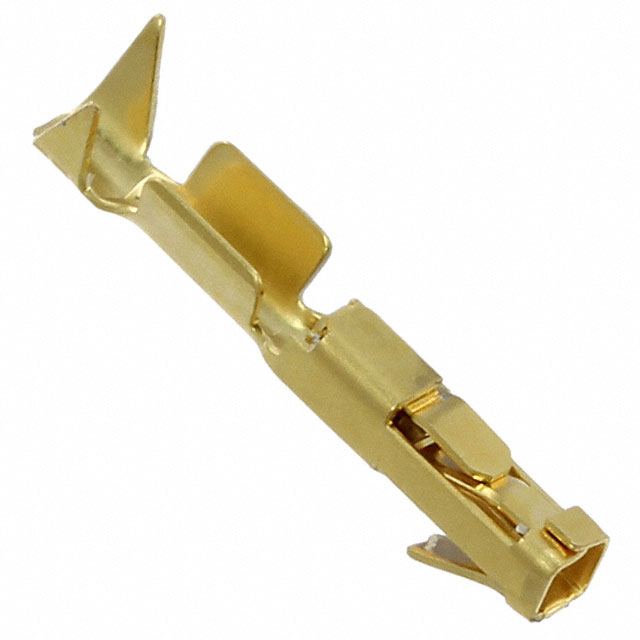

030-51307-001

Active

JAE Electronics

CONN CONTACT

Search across all available documentation for this part.

Active

JAE Electronics

CONN CONTACT

Technical Specifications

Parameters and characteristics for this part

Specification	030-51307-001

Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Phosphor Bronze
Contact Termination	Crimp
Contact Type	Female Socket
Features	Insulation Support
Termination Finish	Gold
Termination Finish Thickness	Flash
Type	Signal
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	22 AWG

Part	Termination Finish	Termination Finish Thickness	Features	Contact Form	Contact Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Type	Contact Material	Contact Finish Thickness
JAE Electronics 030-51304-003
JAE Electronics 030-51304-001	Gold	Flash	Insulation Support	Stamped	Crimp	4 Áin	0.1 Ám	Female Socket	Gold	24 AWG	28 AWG	Signal	Phosphor Bronze
JAE Electronics 030-51304-002
JAE Electronics 030-51307-001	Gold	Flash	Insulation Support	Stamped	Crimp			Female Socket	Gold	22 AWG	24 AWG	Signal	Phosphor Bronze	Flash
JAE Electronics 030-51307-002	Gold	Flash	Insulation Support	Stamped	Crimp	11.8 Áin	0.3 Ám	Female Socket	Gold	22 AWG	24 AWG	Signal	Phosphor Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

D-Sub Contact Female Socket Gold 22-24 AWG Crimp Stamped
