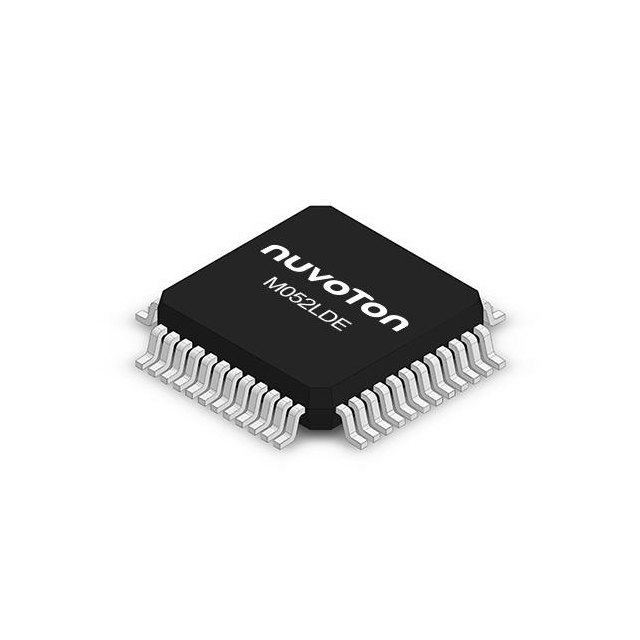

M052LDE

Active

Nuvoton Technology Corporation

IC MCU 32BIT 8KB FLASH 48LQFP

Search across all available documentation for this part.

Active

Nuvoton Technology Corporation

IC MCU 32BIT 8KB FLASH 48LQFP

Technical Specifications

Parameters and characteristics for this part

Specification	M052LDE

Connectivity	IrDA, SPI, UART/USART, EBI/EMI, LINbus, I2C
Core Processor	ARM® Cortex®-M0
Core Size	32-Bit Single-Core
Data Converters [custom]	12 b
Data Converters [custom]	8
Mounting Type	Surface Mount
Number of I/O	40
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	48-LQFN
Peripherals	PWM, LVD, WDT, Brown-out Detect/Reset, POR
Program Memory Type	FLASH
RAM Size	4K x 8
Speed	50 MHz
Supplier Device Package	48-LQFP (7x7)
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	2.5 V

Part	Number of I/O	RAM Size	Program Memory Type	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Speed	Core Processor	Mounting Type	Package / Case	Core Size	Connectivity	Operating Temperature [Max]	Operating Temperature [Min]	Data Converters [custom]	Data Converters [custom]	Oscillator Type	Peripherals	Supplier Device Package	Data Converters [custom]
Nuvoton Technology Corporation M052LBN	40	4K x 8	FLASH	2.5 V	5.5 V	50 MHz	ARM® Cortex®-M0	Surface Mount	48-LQFP	32-Bit Single-Core	EBI/EMI I2C IrDA LINbus SPI UART/USART	85 °C	-40 °C	12 b	8	Internal
Nuvoton Technology Corporation M052LDE	40	4K x 8	FLASH	2.5 V	5.5 V	50 MHz	ARM® Cortex®-M0	Surface Mount	48-LQFN	32-Bit Single-Core	EBI/EMI I2C IrDA LINbus SPI UART/USART	105 °C	-40 °C	12 b	8	Internal	Brown-out Detect/Reset LVD POR PWM WDT	48-LQFP (7x7)
Nuvoton Technology Corporation M052ZAN	24	4K x 8	FLASH	2.5 V	5.5 V	50 MHz	ARM® Cortex®-M0	Surface Mount		32-Bit Single-Core	I2C IrDA SPI UART/USART	85 °C	-40 °C		5	Internal	Brown-out Detect/Reset LVD POR PWM WDT		12 b

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

ARM® Cortex®-M0 NuMicro M051™ DE Microcontroller IC 32-Bit Single-Core 50MHz 8KB (8K x 8) FLASH 48-LQFP (7x7)
