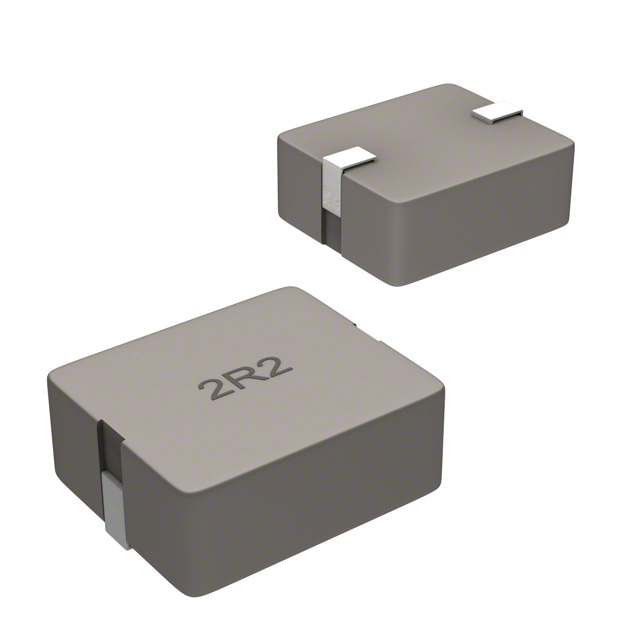

SRP7030-2R2FM

Obsolete

Bourns Inc.

FIXED IND 2.2UH 7A 0.02OHM SMD

Search across all available documentation for this part.

Obsolete

Bourns Inc.

FIXED IND 2.2UH 7A 0.02OHM SMD

Technical Specifications

Parameters and characteristics for this part

Part	Current - Saturation (Isat)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Shielding	Inductance Frequency - Test	DC Resistance (DCR)	Material - Core	Inductance	Height - Seated (Max)	Height - Seated (Max) [Max]	Package / Case	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Features	Tolerance	DC Resistance (DCR) [Max]
Bourns Inc. SRP7030-6R8FM	5.5 A	0.299 in	0.256 in	7.6 mm	6.5 mm	Shielded	100 kHz	50 mOhm	Iron	6.8 µH	3 mm	0.118 in	Nonstandard	Surface Mount	-55 °C	125 °C	4.5 A	Flat Wire	20 %
Bourns Inc. SRP7030-2R2FM	11 A	0.299 in	0.256 in	7.6 mm	6.5 mm	Shielded	100 kHz	20 mOhm	Iron	2.2 µH	3 mm	0.118 in	Nonstandard	Surface Mount	-55 °C	125 °C	7 A	Flat Wire	20 %
Bourns Inc. SRP7030-R82FM	14 A	0.299 in	0.256 in	7.6 mm	6.5 mm	Shielded	100 kHz	6.6 mOhm	Iron	820 nH	3 mm	0.118 in	Nonstandard	Surface Mount	-55 °C	125 °C	12 A	Flat Wire	20 %
Bourns Inc. SRP7030-R10FM	60 A	0.299 in	0.256 in	7.6 mm	6.5 mm	Shielded	100 kHz		Iron	100 nH	3 mm	0.118 in	Nonstandard	Surface Mount	-55 °C	125 °C	32 A	Flat Wire	20 %	1.7 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2.2 µH Shielded Inductor 7 A 20mOhm Max Nonstandard Flat Wire
