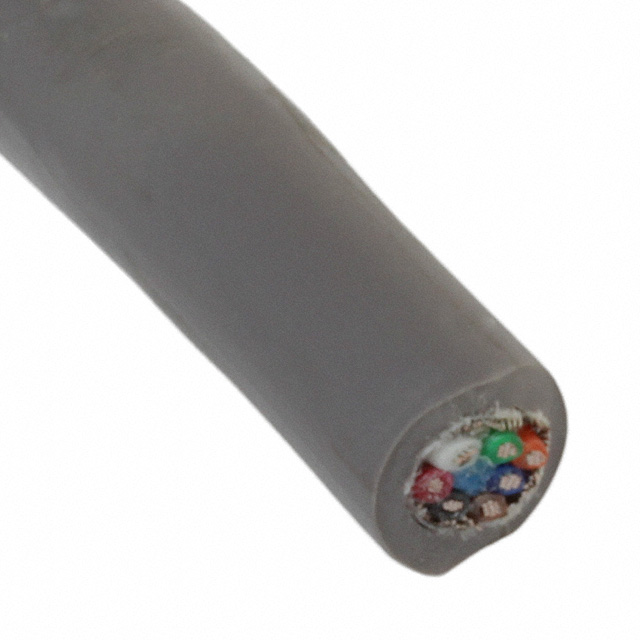

1217C SL005

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 7 CONDUCTOR, 24 AWG, 0.23 MM², 100 FT, 30.5 M

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 7 CONDUCTOR, 24 AWG, 0.23 MM², 100 FT, 30.5 M

Technical Specifications

Parameters and characteristics for this part

Specification	1217C SL005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	5.11 mm
Jacket (Insulation) Diameter [diameter]	0.201 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	7
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Control, Communication
Voltage	300 V
Wire Gauge	24 AWG

Part	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Usage	Shield Material	Shield Coverage	Shield Type	Wire Gauge	Features	Jacket (Insulation) Material	Number of Conductors	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Length [x]	Length [x]	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type
ALPHA WIRE 1217C SL005	32 AWG	7	Slate	Communication Control	Aluminum	100 %	Foil	24 AWG	Drain Wire	Poly-Vinyl Chloride (PVC)	7	Poly-Vinyl Chloride (PVC)	5.11 mm	0.201 in	300 V	30.5 m	100 ft	Copper Tinned	-20 C	80 C	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Conductor Multi-Conductor Cable Slate 24 AWG Foil 100.0' (30.5m)
