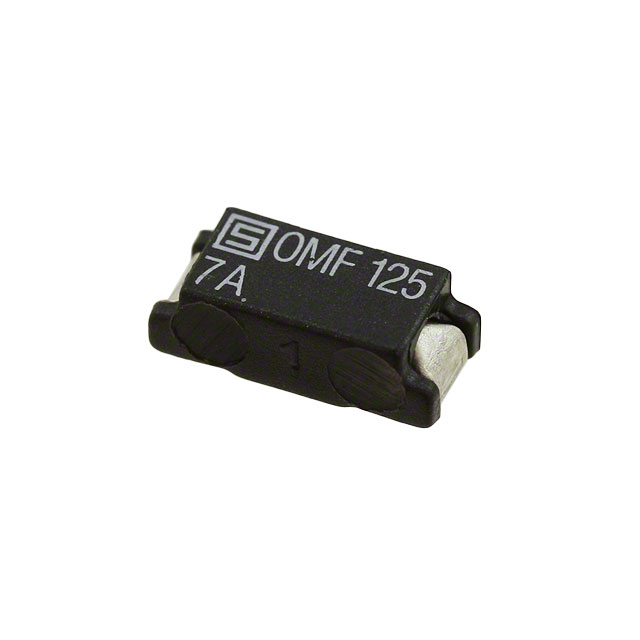

3404.0019.11
ActiveSCHURTER Inc.
FUSE, SURFACE MOUNT, 7 A, FAST ACTING, 125 VAC, 125 VDC, 7.4MM X 3.1MM, OMF 125 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
3404.0019.11
ActiveSCHURTER Inc.
FUSE, SURFACE MOUNT, 7 A, FAST ACTING, 125 VAC, 125 VDC, 7.4MM X 3.1MM, OMF 125 SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3404.0019.11 |
|---|---|
| Breaking Capacity @ Rated Voltage | 100 A |
| Current Rating (Amps) | 7 A |
| Fuse Type | Board Mount |
| Melting I²t | 16 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 2-SMD, J-Lead |
| Response Time | Fast Blow |
| Size / Dimension [x] | 7.4 mm |
| Size / Dimension [x] | 0.291 " |
| Size / Dimension [y] | 0.122 in |
| Size / Dimension [y] | 3.1 mm |
| Size / Dimension [z] | 2.6 mm |
| Size / Dimension [z] | 0.102 " |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.81 | |
| 50 | $ 0.68 | |||
| 100 | $ 0.52 | |||
| 500 | $ 0.47 | |||
Description
General part information
3404.0019 Series
7 A 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, J-Lead
