EXN-23354-SV
ActiveBUD INDUSTRIES

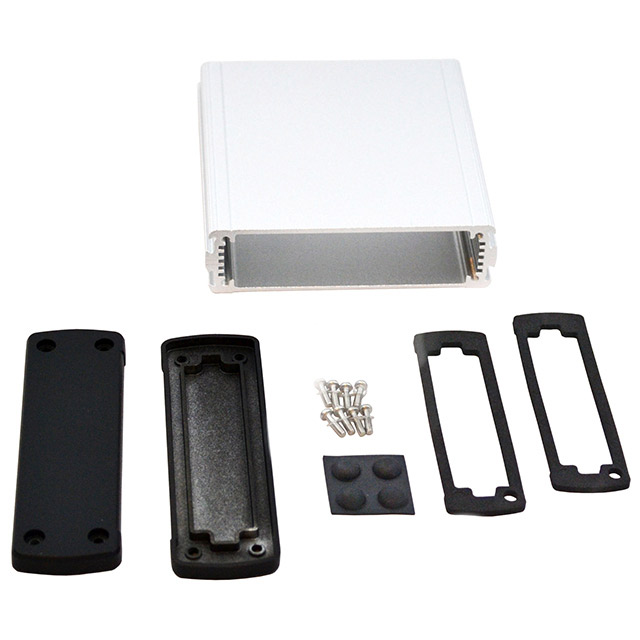

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, 35.2 MM, 119 MM, 113.7 MM, IP66
Deep-Dive with AI
Search across all available documentation for this part.
EXN-23354-SV
ActiveBUD INDUSTRIES
METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, 35.2 MM, 119 MM, 113.7 MM, IP66
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EXN-23354-SV |
|---|---|
| Area (L x W) | 21 in² |
| Area (L x W) | 135 cm² |
| Color | Black, Silver |
| Container Type | Box |
| Design | End Panel(s) |
| Features | Card Guides, Sealing Gaskets |
| Height [z] | 1.386 in |
| Height [z] | 35.2 mm |
| Material | Metal, Aluminum |
| Ratings | IP66 |
| Size / Dimension [x] | 119 mm |
| Size / Dimension [x] | 4.685 in |
| Size / Dimension [y] | 4.476 inches |
| Size / Dimension [y] | 113.7 mm |
| Thickness | 0.091 in |
| Thickness | 2.3 mm |
| Weight | 0.58 lb |
| Weight | 263.08 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
EXN-23354 Series
Box Metal, Aluminum Black, Silver End Panel(s) 4.685" L x 4.476" W (119.00mm x 113.70mm) X 1.386" (35.20mm)
