9311-60035

Active

Amphenol SV Microwave

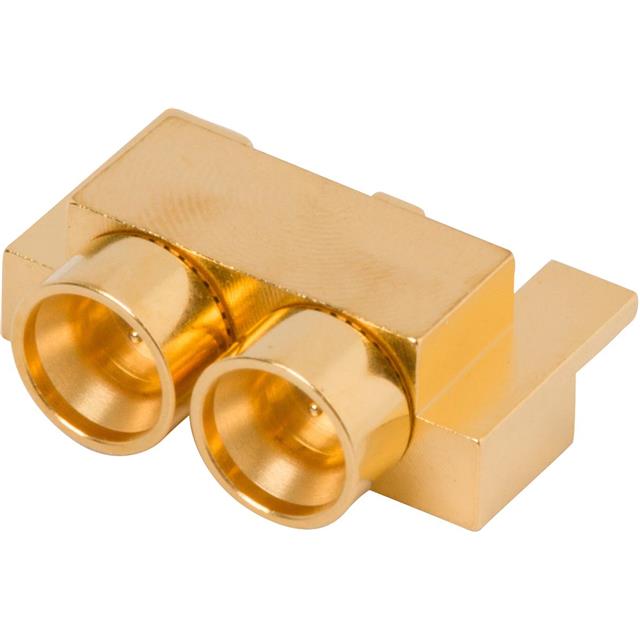

CONN SMP 0HZ TO 26.5GHZ 50OHM SOLDER ST EDGE MOUNT M GOLD OVER NICKEL TRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBoard to Board Brochure Datasheet

9311-60035

Active

Amphenol SV Microwave

CONN SMP 0HZ TO 26.5GHZ 50OHM SOLDER ST EDGE MOUNT M GOLD OVER NICKEL TRAY

Deep-Dive with AI

DocumentsBoard to Board Brochure Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9311-60035

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Full Detent
Frequency - Max [Max]	26.5 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Board Edge, End Launch
Number of Ports	2
Shield Termination	Solder

9311-60 Series

Part	Mounting Type	Housing Color	Mating Cycles	Dielectric Material	Body Finish	Fastening Type	Body Material	Center Contact Material	Impedance	Contact Termination	Number of Ports	Features	Center Contact Plating	Frequency - Max [Max]	Connector Type	Shield Termination	Connector Style	Accessory Type	Color	Features
Amphenol SV Microwave 9311-60036-TD	Board Edge End Launch	Gold	1000	Polytetrafluoroethylene (PTFE)	Gold	Snap-On	Stainless Steel	Beryllium Copper	50 Ohms	Solder	4	Smooth Bore	Gold	26.5 GHz	Male Pin Plug	Solder
Amphenol SV Microwave 9311-60038	Board Edge End Launch	Gold		Polytetrafluoroethylene (PTFE)	Gold	Snap-On	Stainless Steel	Beryllium Copper	50 Ohms	Solder	4	Full Detent	Gold	26.5 GHz	Male Pin Plug	Solder
Amphenol SV Microwave 9311-60034-TD	Board Edge End Launch	Gold	500	Polytetrafluoroethylene (PTFE)	Gold	Snap-On	Stainless Steel	Beryllium Copper	50 Ohms	Solder	2	Limited Detent	Gold	26.5 GHz	Male Pin Plug	Solder
Amphenol SV Microwave 9311-60039-TD	Board Edge End Launch	Gold		Polytetrafluoroethylene (PTFE)	Gold	Snap-On	Stainless Steel	Beryllium Copper	50 Ohms	Solder	4	Full Detent	Gold	65 GHz	Male Pin Plug	Solder	SMPM
Amphenol SV Microwave 9311-60220							Stainless Steel										SMPM	Housing Module	Silver	10
Amphenol SV Microwave 9311-60037	Board Edge End Launch	Gold	500	Polytetrafluoroethylene (PTFE)	Gold	Snap-On	Stainless Steel	Beryllium Copper	50 Ohms	Solder	4	Limited Detent	Gold	26.5 GHz	Male Pin Plug	Solder
Amphenol SV Microwave 9311-60039	Board Edge End Launch	Gold		Polytetrafluoroethylene (PTFE)	Gold	Snap-On	Stainless Steel	Beryllium Copper	50 Ohms	Solder	4	Full Detent	Gold	65 GHz	Male Pin Plug	Solder	SMPM
Amphenol SV Microwave 9311-60033	Board Edge End Launch	Gold	1000	Polytetrafluoroethylene (PTFE)	Gold	Snap-On	Stainless Steel	Beryllium Copper	50 Ohms	Solder	2	Smooth Bore	Gold	26.5 GHz	Male Pin Plug	Solder
Amphenol SV Microwave 9311-60037-TD	Board Edge End Launch	Gold	500	Polytetrafluoroethylene (PTFE)	Gold	Snap-On	Stainless Steel	Beryllium Copper	50 Ohms	Solder	4	Limited Detent	Gold	26.5 GHz	Male Pin Plug	Solder
Amphenol SV Microwave 9311-60035	Board Edge End Launch	Gold		Polytetrafluoroethylene (PTFE)	Gold	Snap-On	Stainless Steel	Beryllium Copper	50 Ohms	Solder	2	Full Detent	Gold	26.5 GHz	Male Pin Plug	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	25	$ 110.49

Description

General part information

9311-60 Series

SMP Connector Plug, Male Pin 50 Ohms Board Edge, End Launch Solder

Documents

Technical documentation and resources

Board to Board Brochure

Datasheet
