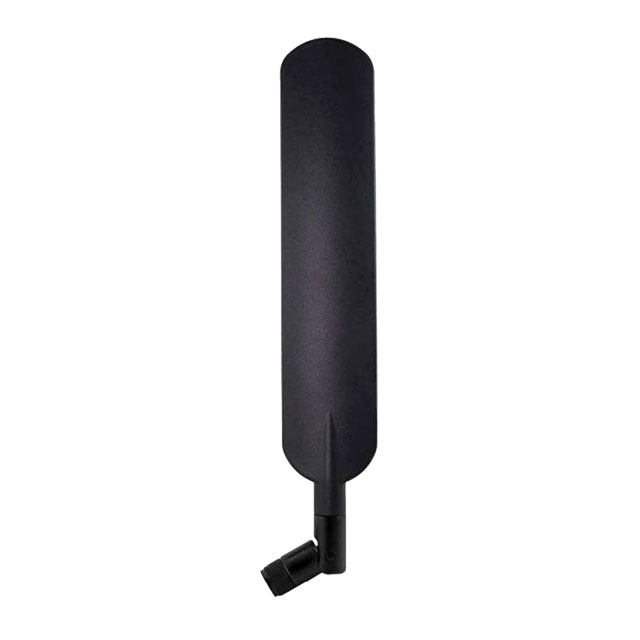

AETC2303XS-SS
ActiveAbracon LLC
LTE 4G/5G & WI-FI 6E WHIP ANTENN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AETC2303XS-SS |
|---|---|
| Antenna Type | Tilt, Whip |
| Applications | LTE, 3G, M2M, 2G, 4G, UWB, 5G, IoT |
| Frequency (Center/Band) | 788.5 MHz, 2.2 GHz, 6.137 GHz, 4.7 GHz, 1.513 GHz, 3.75 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 1.575 GHz, 2.69 GHz, 4.2 GHz, 7.125 GHz, 5 GHz, 960 MHz |
| Frequency Range [Min] | 1.452 GHz, 4.4 GHz, 5.15 GHz, 617 MHz, 3.3 GHz, 1.71 GHz |
| Gain | 2 dBic, 3 dBi, 2.5 dBi |
| Height (Max) [Max] | 9.331 in |
| Height (Max) [Max] | 237 mm |
| Mounting Type | Connector Mount |
| Number of Bands | 6 |
| Power - Max [Max] | 500 mW |
| Return Loss | 12 dB |
| RF Family/Standard | Cellular, WiFi |
| VSWR | 3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 12.24 | |
| 10 | $ 8.71 | |||
| 25 | $ 7.80 | |||
| 100 | $ 6.88 | |||
Description
General part information
AETC2303 Series
RF ANTENNA 2G, 3G, 4G, 5G, IoT, LTE, M2M, UWB Whip, Tilt SMA Male Connector Mount
