109E5724K501

Active

Sanyo Denki America Inc.

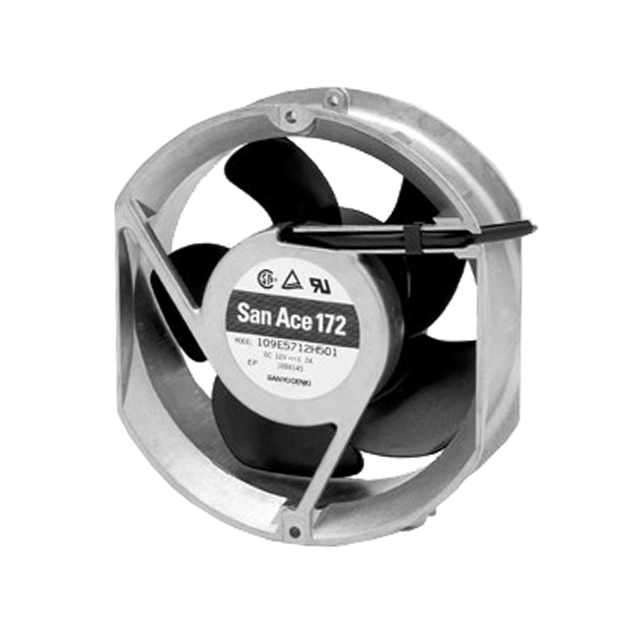

FAN AXIAL 172X51MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRotor Balancing Numbering System DC Fan +1

109E5724K501

Active

Sanyo Denki America Inc.

FAN AXIAL 172X51MM 24VDC WIRE

Deep-Dive with AI

DocumentsRotor Balancing Numbering System DC Fan +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	109E5724K501

Air Flow	8.4 mł/min
Air Flow	300 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	1.3 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	60 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	31.2 W
RPM	4100 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	172 mm
Size / Dimension [z]	150 mm
Static Pressure	0.976 in H2O
Static Pressure	243 Pa
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Weight	760 g
Weight	1.7 lbs
Width [y]	51 mm

109E5724 Series

Part	Weight	Weight	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Material - Blade	Voltage - Rated	Width [y]	Air Flow	Air Flow	Power (Watts)	Noise	Current Rating (Amps)	Material - Frame	Bearing Type	Fan Type	Lifetime @ Temp.	Static Pressure	Static Pressure	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Features	RPM
Sanyo Denki America Inc. 109E5724H501	760 g	1.7 lbs	-20 °C	70 °C	-20 C	70 °C	3 Wire Leads	Plastic	24 VDC	51 mm	226 CFM	6.33 m³/min	13.92 W	52 dB	580 mA	Aluminum	Ball	Tubeaxial	40000 Hrs	137.2 Pa	0.551 in H2O	Rectangular/Rounded	150 mm	172 mm	CSA TUV UL	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109E5724M502	760 g	1.7 lbs	-20 °C	70 °C	-20 C	70 °C	2 Wire Leads	Plastic	24 VDC	51 mm	148 CFM	4.14 mł/min	4.8 W	41 dB	0.2 A	Aluminum	Ball	Tubeaxial	40000 Hrs	67.6 Pa	0.271 in H2O	Rectangular/Rounded	150 mm	172 mm	CSA TUV UL		2000 RPM
Sanyo Denki America Inc. 109E5724H5J01	760 g	1.7 lbs					3 Wire Leads	Plastic	24 VDC	51 mm						Aluminum	Ball	Tubeaxial				Rectangular/Rounded	150 mm	172 mm		Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109E5724C5D01	760 g	1.7 lbs	-20 °C	70 °C	-20 C	70 °C	3 Wire Leads	Plastic	24 VDC	51 mm	350 CFM	9.8 m³/min	55.2 W		2.3 A	Aluminum	Ball	Tubeaxial	40000 Hrs	308 Pa	1.237 in H2O	Rectangular/Rounded	150 mm	172 mm	CSA TUV UL	Locked Rotor Sensor	4800 RPM
Sanyo Denki America Inc. 109E5724C501	760 g	1.7 lbs	-20 °C	70 °C	-20 C	70 °C	3 Wire Leads	Plastic	24 VDC	51 mm	350 CFM	9.8 m³/min	55.2 W		2.3 A	Aluminum	Ball	Tubeaxial	40000 Hrs	308 Pa	1.237 in H2O	Rectangular/Rounded	150 mm	172 mm	CSA TUV UL	Locked Rotor Protection Speed Sensor (Tach)	4800 RPM
Sanyo Denki America Inc. 109E5724K501	760 g	1.7 lbs	-20 °C	70 °C	-20 C	70 °C	3 Wire Leads	Plastic	24 VDC	51 mm	300 CFM	8.4 mł/min	31.2 W	60 dB(A)	1.3 A	Aluminum	Ball	Tubeaxial	40000 Hrs	243 Pa	0.976 in H2O	Rectangular/Rounded	150 mm	172 mm	CSA TUV UL	Locked Rotor Protection Speed Sensor (Tach)	4100 RPM
Sanyo Denki America Inc. 109E5724F501	760 g	1.7 lbs	-20 °C	70 °C	-20 C	70 °C	3 Wire Leads	Plastic	24 VDC	51 mm	180 CFM	5.04 mł/min	8.4 W	47 dB	0.35 A	Aluminum	Ball	Tubeaxial	40000 Hrs	94.6 Pa	0.38 in H2O	Rectangular/Rounded	150 mm	172 mm	CSA TUV UL	Locked Rotor Protection Speed Sensor (Tach)	2500 RPM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 119.36
		10	$ 106.42
		25	$ 101.66
		50	$ 98.20
		100	$ 94.85

Description

General part information

109E5724 Series

Fan Tubeaxial 24VDC Rectangular/Rounded - 172mm L x 150mm H Ball 300.0 CFM (8.40mł/min) 3 Wire Leads
