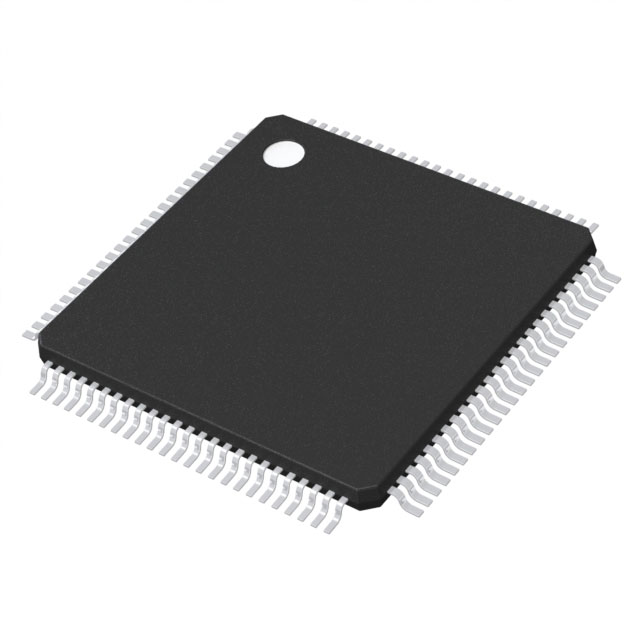

TDF8534HH/N3K

Active

Freescale Semiconductor - NXP

TDF8534HH/N3/ TRAY ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Freescale Semiconductor - NXP

TDF8534HH/N3/ TRAY ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	TDF8534HH/N3K

Max Output Power x Channels @ Load	80 W
Max Output Power x Channels @ Load [custom]	5
Mounting Type	Surface Mount
Output Type [custom]	5-Channel
Package / Case	100-FQFP Exposed Pad
Supplier Device Package	100-HLQFP (14x14)
Type	Class D
Voltage - Supply [Max]	25 V
Voltage - Supply [Min]	5.5 V

Part	Output Type [custom]	Max Output Power x Channels @ Load	Max Output Power x Channels @ Load [custom]	Mounting Type	Type	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case
Freescale Semiconductor - NXP TDF8534HH/N3K	5-Channel	80 W	5	Surface Mount	Class D	100-HLQFP (14x14)	5.5 V	25 V	100-FQFP Exposed Pad

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	450	$ 26.87
Newark	Each	250	$ 28.00
		500	$ 27.20

General part information

Amplifier IC 5-Channel Class D 100-HLQFP (14x14)
