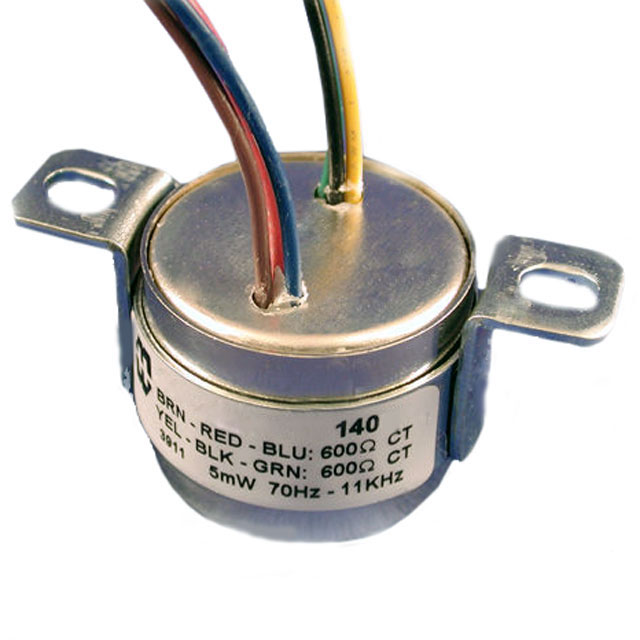

140PEX

Active

Hammond Manufacturing

XFMR 600 150/150 / 2.4K, 600/600

Search across all available documentation for this part.

Active

Hammond Manufacturing

XFMR 600 150/150 / 2.4K, 600/600

Technical Specifications

Parameters and characteristics for this part

Specification	140PEX

DC Resistance (DCR) - Primary	58 Ohm
DC Resistance (DCR) - Secondary [custom]	190 Ohm
Frequency Range [Max]	20 kHz
Frequency Range [Min]	20 Hz
Frequency Response	1 dB
Height - Seated (Max) [Max] [z]	25.4 mm
Height - Seated (Max) [Max] [z]	25.4 mm
Impedance - Primary (Ohms)	600 Ohms
Impedance - Primary (Ohms)	150/150
Impedance - Secondary (Ohms)	2.4k
Impedance - Secondary (Ohms) [Max]	600 Ohms
Impedance - Secondary (Ohms) [Min]	600 Ohms
Insertion Loss	0.8 dB
Mounting Type	Chassis Mount
Power Level	10 dB
Return Loss	30 dB
Size / Dimension [diameter]	31.75 mm
Size / Dimension [diameter]	1.25 in
Termination Style	Screw Terminal
Turns Ratio - Primary:Secondary [custom]	1
Turns Ratio - Primary:Secondary [custom]	1, 2, 4
Voltage - Isolation	500 Vrms

Part	Power Level	Insertion Loss	Frequency Response	DC Resistance (DCR) - Primary	Voltage - Isolation	Return Loss	Size / Dimension [diameter]	Size / Dimension [diameter]	Impedance - Secondary (Ohms) [Max]	Impedance - Secondary (Ohms) [Min]	Impedance - Secondary (Ohms)	DC Resistance (DCR) - Secondary [custom]	Impedance - Primary (Ohms)	Impedance - Primary (Ohms)	Termination Style	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency Range [Min]	Frequency Range [Max]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Mounting Type
Hammond Manufacturing 140PEX	10 dB	0.8 dB	1 dB	58 Ohm	500 Vrms	30 dB	31.75 mm	1.25 in	600 Ohms	600 Ohms	2.4k	190 Ohm	600 Ohms	150/150	Screw Terminal	25.4 mm	25.4 mm	20 Hz	20 kHz	1	1 2 4	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

600, 150/150 Impedance Primary Ohms 2.4k, 600/600 Impedance Secondary Ohms 1:1, 1:2, 1:4 Audio Transformer 20Hz ~ 20kHz Chassis Mount
