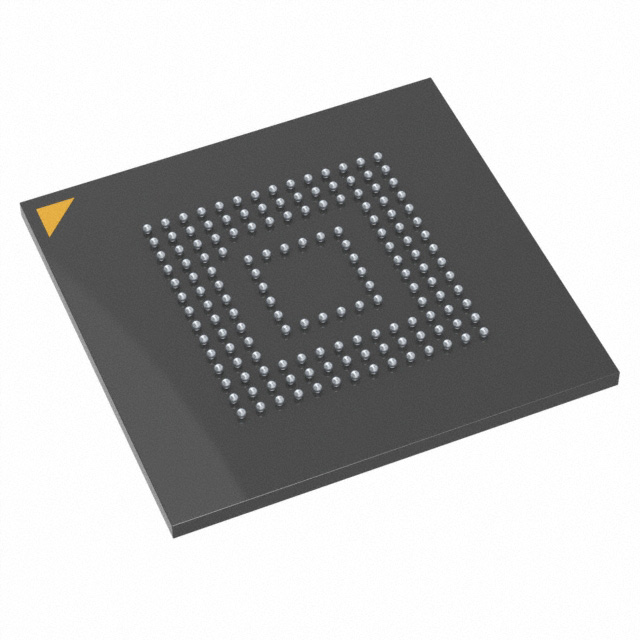

NSEC53K008-ITJ

Active

Insignis Technology Corporation

200MHZ FBGA-153(11.5X13) NAND FLASH ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NSEC53K008-ITJ

Active

Insignis Technology Corporation

200MHZ FBGA-153(11.5X13) NAND FLASH ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NSEC53K008-ITJ

Clock Frequency	200 MHz
Memory Format	FLASH
Memory Interface	eMMC_5
Memory Organization	8 G
Memory Size	64 Gbit
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	153-VFBGA
Supplier Device Package	153-FBGA
Supplier Device Package [x]	11.5
Supplier Device Package [y]	13
Technology	FLASH - NAND (pSLC)
Voltage - Supply	3.3 V

NSEC53 Series

Part	Memory Interface	Package / Case	Memory Size	Clock Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Memory Type	Memory Format	Mounting Type	Technology	Memory Organization	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Voltage - Supply [Min]	Voltage - Supply [Max]	Voltage - Supply
Insignis Technology Corporation NSEC53T016-AT	eMMC_5.1	153-VFBGA	128 Mb	200 MHz	85 °C	-40 °C	Non-Volatile	FLASH	Surface Mount	FLASH - NAND (TLC)	16 G	11.5	153-FBGA	13	2.7 V	3.6 V
Insignis Technology Corporation NSEC53T128-AT	eMMC_5.1	153-VFBGA	1 Mpts	200 MHz	85 °C	-40 °C	Non-Volatile	FLASH	Surface Mount	FLASH - NAND (TLC)	128 G	11.5	153-FBGA	13	2.7 V	3.6 V
Insignis Technology Corporation NSEC53T128-IT	eMMC_5.1	153-VFBGA	1 Mpts	200 MHz	85 °C	-40 °C	Non-Volatile	FLASH	Surface Mount	FLASH - NAND (TLC)	128 G	11.5	153-FBGA	13	2.7 V	3.6 V
Insignis Technology Corporation NSEC53K016-AT	eMMC_5	153-VFBGA	128 Mb	200 MHz	85 °C	-40 °C	Non-Volatile	FLASH	Surface Mount	FLASH - NAND (MLC)	16 G	11.5	153-FBGA	13			3.3 V
Insignis Technology Corporation NSEC53K008-ITJ	eMMC_5	153-VFBGA	64 Gbit	200 MHz	85 °C	-40 °C	Non-Volatile	FLASH	Surface Mount	FLASH - NAND (pSLC)	8 G	11.5	153-FBGA	13			3.3 V
Insignis Technology Corporation NSEC53T064-ITJ	eMMC_5.1	153-VFBGA	64 MB	200 MHz	85 °C	-40 °C	Non-Volatile	FLASH	Surface Mount	FLASH - NAND (pSLC)	64 G	11.5	153-FBGA	13	2.7 V	3.6 V
Insignis Technology Corporation NSEC53K008-AT	eMMC_5	153-VFBGA	64 Gbit	200 MHz	85 °C	-40 °C	Non-Volatile	FLASH	Surface Mount	FLASH - NAND (MLC)	8 G	11.5	153-FBGA	13			3.3 V
Insignis Technology Corporation NSEC53T008-ITJ	eMMC_5.1	153-VFBGA	64 Gbit	200 MHz	85 °C	-40 °C	Non-Volatile	FLASH	Surface Mount	FLASH - NAND (pSLC)	8 G	11.5	153-FBGA	13	2.7 V	3.6 V
Insignis Technology Corporation NSEC53T016-IT	eMMC_5.1	153-VFBGA	128 Mb	200 MHz	85 °C	-40 °C	Non-Volatile	FLASH	Surface Mount	FLASH - NAND (TLC)	16 G	11.5	153-FBGA	13	2.7 V	3.6 V
Insignis Technology Corporation NSEC53K004-ITJ	eMMC_5	153-VFBGA	32 Gbit	200 MHz	85 °C	-40 °C	Non-Volatile	FLASH	Surface Mount	FLASH - NAND (pSLC)		11.5	153-FBGA	13			3.3 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1520	$ 22.67
LCSC	Piece	1	$ 60.29
		152	$ 24.06
		456	$ 23.25
		1064	$ 22.86

Description

General part information

NSEC53 Series

FLASH - NAND (pSLC) Memory IC 64Gbit eMMC_5 200 MHz 153-FBGA (11.5x13)
