5312/2TDHP

Active

ebm-papst Inc.

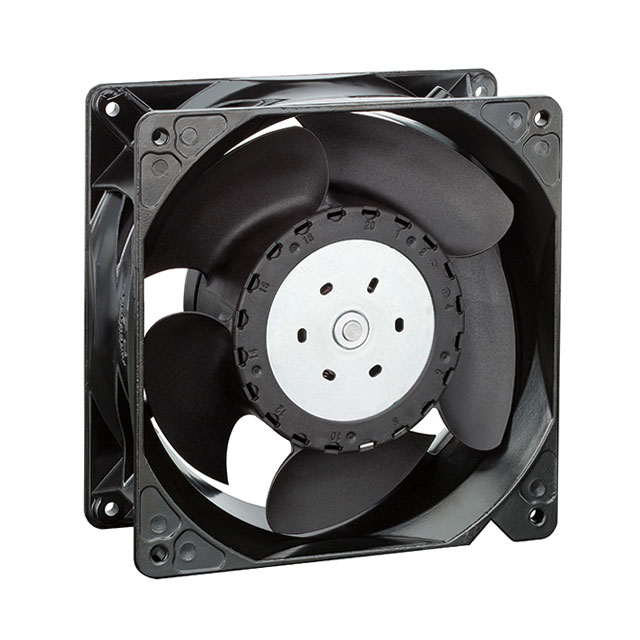

FAN AXIAL 140X50.8MM 12VDC WIRE

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL 140X50.8MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	5312/2TDHP

Air Flow	241.3 CFM
Air Flow	6.76 mł/min
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Aluminum
Noise	70 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	41 W
RPM	6000 RPM
Size / Dimension [x]	140 mm
Size / Dimension [z]	140 mm
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	16 V
Voltage Range [Min]	8 VDC
Weight	907.2 g
Weight	2 lbs
Width [y]	2 "

Part	Material - Frame	Width [y]	Air Flow	Air Flow	Termination	Material - Blade	Power (Watts)	Lifetime @ Temp.	Weight	Weight	Voltage Range [Min]	Voltage Range [Max]	RPM	Fan Type	Bearing Type	Noise	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Size / Dimension [x]	Size / Dimension [z]	Voltage - Rated
ebm-papst Inc. 5312/2TDHP	Aluminum	2 "	241.3 CFM	6.76 mł/min	4 Wire Leads	Fiberglass Reinforced Nylon Polyamide (PA)	41 W	70000 Hrs	907.2 g	2 lbs	8 VDC	16 V	6000 RPM	Tubeaxial	Ball	70 dB(A)	-20 °C	70 °C	-20 C	70 °C	PWM Control Speed Sensor (Tach)	140 mm	140 mm	12 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 140.88

General part information

Fan Tubeaxial 12VDC Square - 140mm L x 140mm H Ball 241.3 CFM (6.76m³/min) 4 Wire Leads
