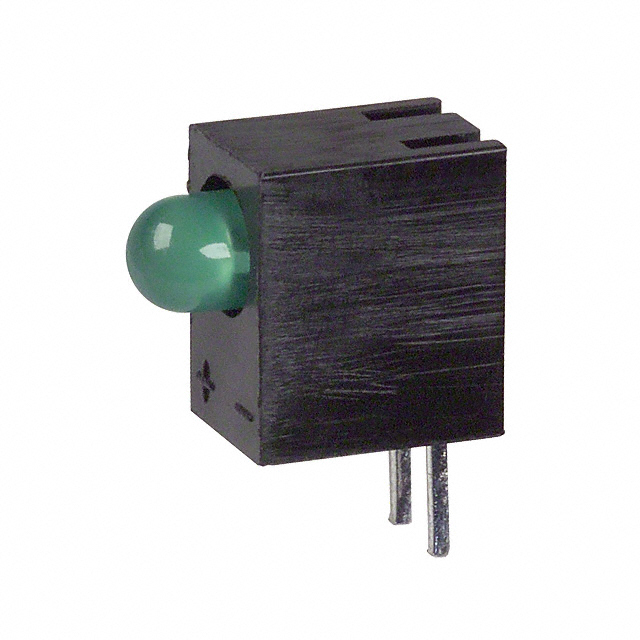

SSF-LXH103GD-5V

Active

Lumex Opto/Components Inc.

LED CBI 3MM GRN RA PCMNT

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED CBI 3MM GRN RA PCMNT

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating	Viewing Angle	Color	Lens Type	Millicandela Rating	Lens Size	Lens Size	Mounting Type	Lens Style	Wavelength - Peak	Configuration	Current	Lens Size [diameter]
Lumex Opto/Components Inc. SSF-LXH103SYD	2 V	60 °	Yellow	Diffused Tinted	100 mcd	3 mm	T-1	Through Hole Right Angle	Round with Domed Top	590 nm	Single
Lumex Opto/Components Inc. SSF-LXH103SRD	1.8 V	60 °	Red	Diffused Tinted	80 mcd	3 mm	T-1	Through Hole Right Angle	Round with Domed Top	660 nm	Single
Lumex Opto/Components Inc. SSF-LXH103SUGD		60 °	Green	Diffused Green	150 mcd	3 mm	T-1	Through Hole Right Angle	Round with Domed Top		Single
Lumex Opto/Components Inc. SSF-LXH103LID	2 V	60 °	Red	Diffused Tinted	40 mcd	3 mm	T-1	Through Hole Right Angle	Round with Domed Top	635 nm	Single
Lumex Opto/Components Inc. SSF-LXH103USBD		60 °	Blue	Diffused Tinted	80 mcd	3 mm	T-1	Through Hole Right Angle	Round with Domed Top		Single
Lumex Opto/Components Inc. SSF-LXH103UWC	3.6 V	34 °	White	Diffused White	1200 mcd			Through Hole Right Angle		550 nm	Single
Lumex Opto/Components Inc. SSF-LXH103GD-5V	5 V	8 °	Green	Diffused Tinted	80 mcd	3 mm	T-1	Through Hole Right Angle	Round with Domed Top	565 nm	Single	12 mA
Lumex Opto/Components Inc. SSF-LXH103ID	2.1 V	60 °	Red	Diffused Tinted	30 mcd			Through Hole Right Angle	Round with Domed Top	635 nm	Single		3 mm
Lumex Opto/Components Inc. SSF-LXH103LGD	2.1 V	80 °	Green	Diffused Tinted	15 mcd	3 mm	T-1	Through Hole Right Angle	Round with Domed Top	565 nm	Single
Lumex Opto/Components Inc. SSF-LXH103YD	2.1 V	60 °	Yellow	Diffused Tinted	30 mcd	3 mm	T-1	Through Hole Right Angle	Round with Domed Top	585 nm	Single

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Circuit Board Indicator LED Circuit Board Indicator Single Green Diffused, Tinted 5V 12mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle

Technical documentation and resources

No documents available
