145-0701-221

Active

Cinch Connectivity Solutions Johnson

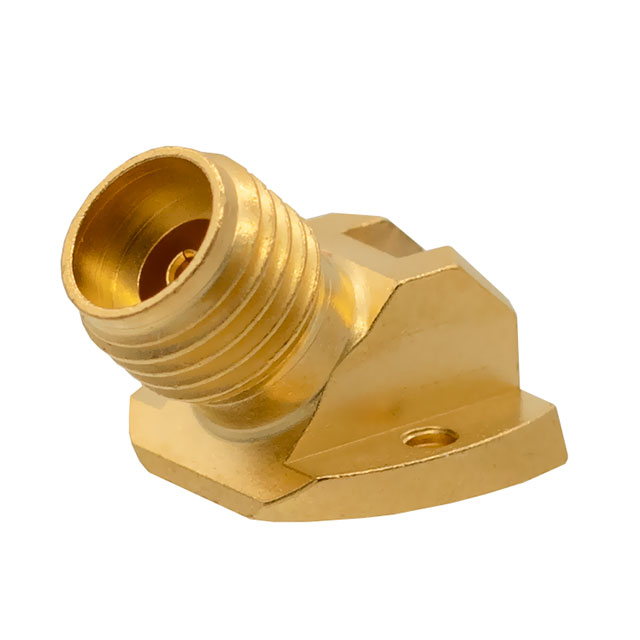

2.92MM 45 DEGREE PC MOUNT JACK

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Johnson

2.92MM 45 DEGREE PC MOUNT JACK

Technical Specifications

Parameters and characteristics for this part

Specification	145-0701-221

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	2.92 mm
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Mounting Hardware
Frequency - Max [Max]	40 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Through Hole, Surface Mount, 45° Angle
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Mating Cycles	Connector Style	Body Finish	Frequency - Max [Max]	Contact Termination	Mounting Type	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Impedance	Features	Housing Color	Dielectric Material	Connector Type	Body Material	Number of Ports	Center Contact Material	Shield Termination	Mounting Feature
Cinch Connectivity Solutions Johnson 145-0701-221	500	2.92 mm	Gold	40 GHz	Solder	Surface Mount 45° Angle Through Hole	Gold	85 °C	-40 °C	250 VDC	50 Ohms	Mounting Hardware	Gold	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Brass	1	Beryllium Copper	Solder
Cinch Connectivity Solutions Johnson 145-0701-212	500	2.92 mm		40 GHz	Compression		Gold	125 °C	-55 °C		50 Ohms	Mounting Hardware	Silver	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Stainless Steel	1	Beryllium Copper	Screw	Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.92mm Connector Jack, Female Socket 50 Ohms Surface Mount, 45° Angle; Through Hole Solder

Technical documentation and resources

No documents available
