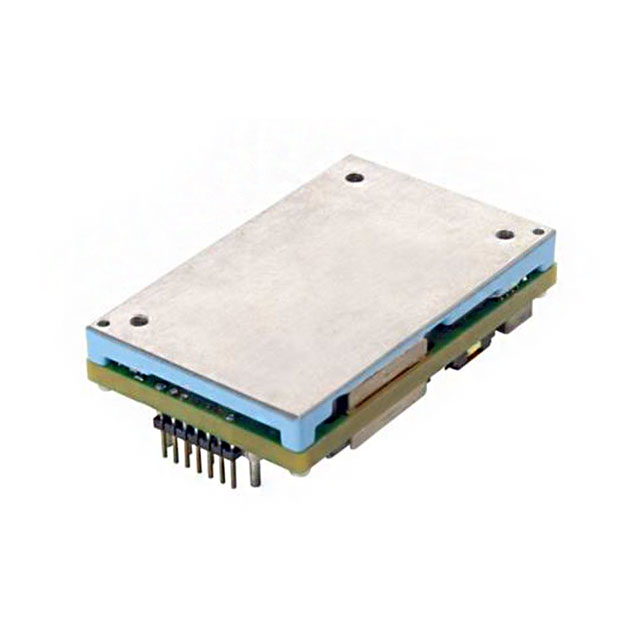

QSDW050A0B41-HZ

Active

OmniOn Power™

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 600W 36-75VIN 12V 50A TH NEGLOGC PMBUS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

QSDW050A0B41-HZ

Active

OmniOn Power™

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 600W 36-75VIN 12V 50A TH NEGLOGC PMBUS

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QSDW050A0B41-HZ

Applications	ITE (Commercial)
Current - Output (Max) [Max]	50 A
Efficiency	96 %
Features	OTP, Remote On/Off, OVP, UVLO, OCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Quarter Brick
Power (Watts)	600 W
Size / Dimension [x]	58.4 mm
Size / Dimension [x]	2.3 in
Size / Dimension [y]	36.8 mm
Size / Dimension [y]	1.45 in
Size / Dimension [z]	13.7 mm
Size / Dimension [z]	0.54 in
Supplier Device Package	Quarter Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	12 V

QSD(V)W050A0B Series

Isolated DC/DC Converters - Through Hole 600W 36-75Vin 12V 50A TH Neg Logic

Part	Voltage - Output 1	Mounting Type	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Efficiency	Power (Watts)	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Applications	Type	Features	Number of Outputs	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Package / Case
OmniOn Power™ QSDW050A0B641-PHZ	12 V	Through Hole	50 A	75 V	96 %	600 W	2250 VDC	85 °C	-40 °C	Quarter Brick	ITE (Commercial)	Isolated Module	OCP OTP OVP Remote On/Off UVLO	1	58.4 mm	2.3 in	36.8 mm	13.7 mm	1.45 in	0.54 in	36 V	Quarter Brick
OmniOn Power™ QSDW050A0B641-PHZ	12 V	Through Hole	50 A	75 V	96 %	600 W	2250 VDC	85 °C	-40 °C	Quarter Brick	ITE (Commercial)	Isolated Module	OCP OTP OVP Remote On/Off UVLO	1	58.4 mm	2.3 in	36.8 mm	13.7 mm	1.45 in	0.54 in	36 V	Quarter Brick
OmniOn Power™ QSVW050A0B41-PHZ	12 V	Through Hole	50 A	75 V	96 %	600 W	2250 VDC	85 °C	-40 °C	Quarter Brick	ITE (Commercial)	Isolated Module	OCP OTP OVP Remote On/Off UVLO	1	58.4 mm	2.3 in	36.8 mm	13.7 mm	1.45 in	0.54 in	36 V	Quarter Brick
OmniOn Power™ QSVW050A0B41-HZ	12 V	Through Hole	50 A	75 V	96 %	600 W	2250 VDC	85 °C	-40 °C	Quarter Brick	ITE (Commercial)	Isolated Module	OCP OTP OVP Remote On/Off UVLO	1	58.4 mm	2.3 in	36.8 mm	13.7 mm	1.45 in	0.54 in	36 V	Quarter Brick
OmniOn Power™ QSDW050A0B41-HZ	12 V	Through Hole	50 A	75 V	96 %	600 W	2250 VDC	85 °C	-40 °C	Quarter Brick	ITE (Commercial)	Isolated Module	OCP OTP OVP Remote On/Off UVLO	1	58.4 mm	2.3 in	36.8 mm	13.7 mm	1.45 in	0.54 in	36 V	Quarter Brick
OmniOn Power™ QSVW050A0B641-HZ	12 V	Through Hole	50 A	75 V	96 %	600 W	2250 VDC	85 °C	-40 °C	Quarter Brick	ITE (Commercial)	Isolated Module	OCP OTP OVP Remote On/Off UVLO	1	58.4 mm	2.3 in	36.8 mm	13.7 mm	1.45 in	0.54 in	36 V	Quarter Brick

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 116.75
		5	$ 115.82
		24	$ 114.89
		48	$ 103.77
		96	$ 98.58
Sager	N/A	1	$ 106.36
		5	$ 104.69
		10	$ 101.93
		25	$ 100.53
		50	$ 97.85
		75	$ 95.31

Description

General part information

QSD(V)W050A0B Series

Isolated DC/DC Converters - Through Hole 600W 36-75Vin 12V 50A TH Neg Logic
