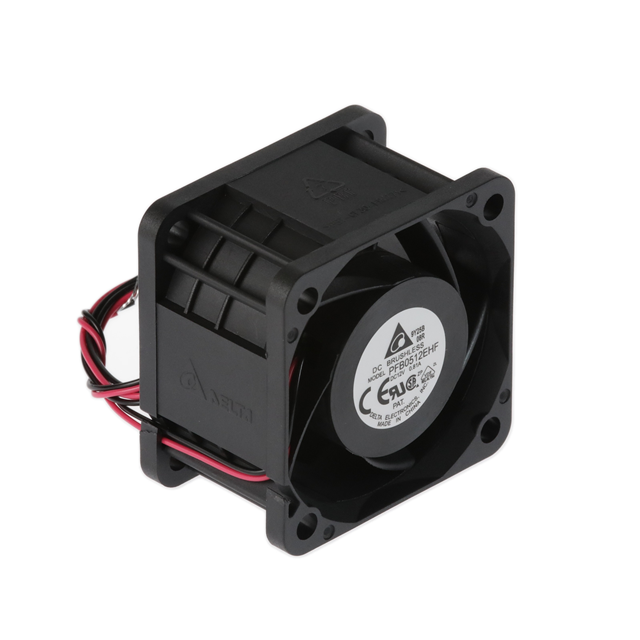

PFB0512EHF

Active

Delta Electronics

FAN AXIAL 50X32MM 12VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 50X32MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Rated	Width [y]	Size / Dimension [z]	Size / Dimension [x]	RPM	Features	Noise	Fan Type	Material - Blade	Weight	Weight	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Air Flow	Air Flow	Material - Frame	Termination	Bearing Type	Lifetime @ Temp.	Static Pressure	Static Pressure	Approval Agency	Power (Watts)	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)
Delta Electronics PFB0512EHF-R00	12 VDC	32 mm	50 mm	50 mm	10000 RPM	Locked Rotor Sensor	51.2 dB(A)	Tubeaxial	Plastic	0.128 lb	58.06 g	70 °C	70 °C	-10 °C	-10 °C	31.6 CFM	0.885 m³/min	Plastic	3 Wire Leads	Ball	70000 Hrs	1.051 in H2O	261.8 Pa	CE CSA UL VDE	6.48 W	13.2 VDC	7 V	0.54 A
Delta Electronics PFB0512EHF	12 VDC	32 mm	50 mm	50 mm	10000 RPM		51.2 dB(A)	Tubeaxial	Plastic	0.128 lb	58.06 g	70 °C	70 °C	-10 °C	-10 °C	31.6 CFM	0.885 m³/min	Plastic	2 Wire Leads	Ball	70000 Hrs	1.051 in H2O	261.8 Pa	CE CSA UL VDE	6.48 W	13.2 VDC	5 VDC	0.54 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 50mm L x 50mm H Ball 31.6 CFM (0.885m³/min) 2 Wire Leads
