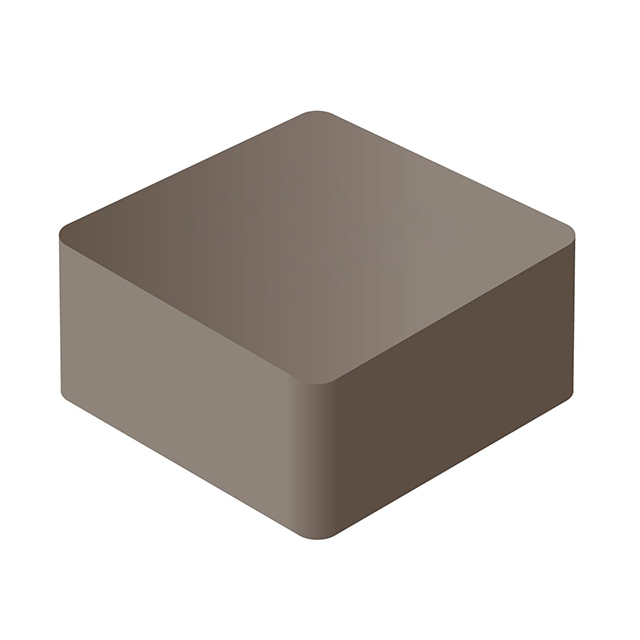

SRP4020FA-1R0M

Active

Bourns Inc.

IND,4.1X4.1X1.9MM,1UH,20%,11A,SHD,SMD /TAPE & REEL - 13" REEL ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Bourns Inc.

IND,4.1X4.1X1.9MM,1UH,20%,11A,SHD,SMD /TAPE & REEL - 13" REEL ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Q @ Freq	Mounting Type	Material - Core	DC Resistance (DCR) [Max]	Shielding	Frequency - Self Resonant	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Type	Current - Saturation (Isat)	Ratings	Inductance Frequency - Test	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance	DC Resistance (DCR)
Bourns Inc. SRP4020FA-1R0M	155 °C	-55 °C	11 A	20 100 kHz	Surface Mount	Iron Powder	11.7 mOhm	Shielded	56 MHz	20 %	0.161 in	4.1 mm	4.1 mm	0.161 in	Drum Core Wirewound	5.4 A	AEC-Q200	100 kHz	Nonstandard	2.1 mm	0.083 "	1 µH
Bourns Inc. SRP4020FA-1R5M	155 °C	-55 °C	9.1 A	20 100 kHz	Surface Mount	Iron Powder		Shielded	45 MHz	20 %	0.161 in	4.1 mm	4.1 mm	0.161 in	Drum Core Wirewound	4.5 A	AEC-Q200	100 kHz	Nonstandard	2.1 mm	0.083 "	1.5 µH	15.8 mOhm
Bourns Inc. SRP4020FA-R68M	155 °C	-55 °C	12 A	20 100 kHz	Surface Mount	Iron Powder	8.2 mOhm	Shielded	73 MHz	20 %	0.161 in	4.1 mm	4.1 mm	0.161 in	Drum Core Wirewound	8 A	AEC-Q200	100 kHz	Nonstandard	2.1 mm	0.083 "	0.68 µH
Bourns Inc. SRP4020FA-1R2M	155 °C	-55 °C	9.5 A	20 100 kHz	Surface Mount	Iron Powder		Shielded	53 MHz	20 %	0.161 in	4.1 mm	4.1 mm	0.161 in	Drum Core Wirewound	5 A	AEC-Q200	100 kHz	Nonstandard	2.1 mm	0.083 "	1.2 µH	13.4 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 µH Shielded Drum Core, Wirewound Inductor 11 A 11.7mOhm Max Nonstandard
