3PN1010B
ActiveVARIABLE, PLUG IN, MANUALLY OPERATED, SINGLE PHASE, 50HZ / 60HZ, 120V, 140V
Deep-Dive with AI
Search across all available documentation for this part.
3PN1010B
ActiveVARIABLE, PLUG IN, MANUALLY OPERATED, SINGLE PHASE, 50HZ / 60HZ, 120V, 140V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3PN1010B |
|---|---|
| Constant Current Load - Max [Max] | 10 A |
| Input Type | Plug, 6' Cord |
| Output Type | Receptacle |
| Size [x] | 6.96 in |
| Size [x] | 176.78 mm |
| Size [y] | 4.62 in |
| Size [y] | 117.35 mm |
| Size [z] | 5.5 in |
| Size [z] | 139.7 mm |
| Type | Bench |
| Voltage - Output | 140 VAC |
| Voltage - Supply | 120 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
3PN1010 Series

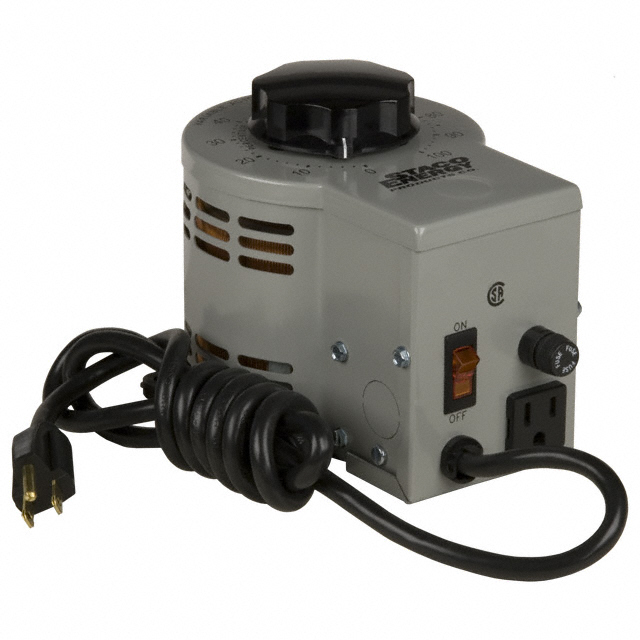

The 3PN1010B is a Variable Transformer featured with a ventilated steel case, input line cord and plug, fused NEMA rated output receptacle and an illuminated on/off switch. They are connected for output voltage increase with a clockwise rotation and the dials are graduated from 0-100% of the voltage setting. For application flexibility, two field modification kits have been added. The 3PN-SK kit provides an adjustable voltage stop for 3PN1000 series.
