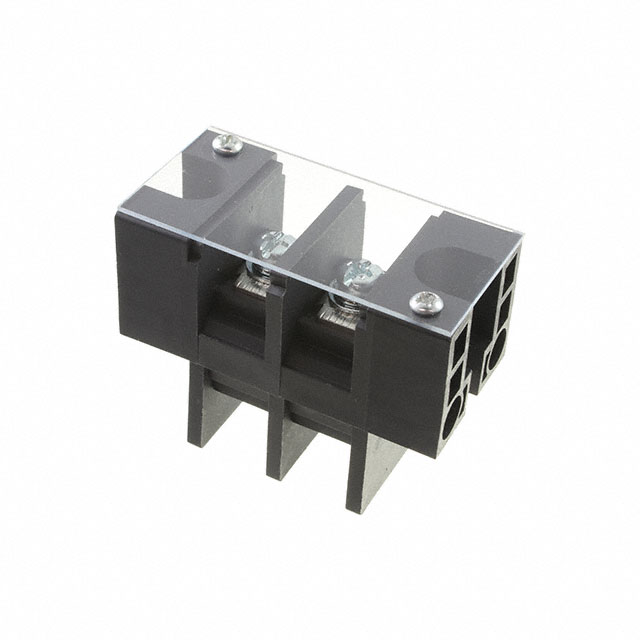

TBU-02-W3-CCS

Active

Adam Tech

TERMINAL BLOCK, 2 POSITION

Search across all available documentation for this part.

Active

Adam Tech

TERMINAL BLOCK, 2 POSITION

Technical Specifications

Parameters and characteristics for this part

Specification	TBU-02-W3-CCS

Barrier Type	2 Wall (Dual)
Bottom Termination	Screw
Color	Black
Current Rating (Amps)	65 A
Features	Flange
Material - Insulation	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits	2
Number of Rows	1
Number of Wire Entries	2
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.63 in
Pitch [x]	16 mm
Terminal Block Type	Barrier Block
Terminal Screw Finish	Nickel
Terminal Screw Material	Steel
Top Termination	Screws
Voltage Rating	600 V
Wire Gauge [Max]	14 AWG
Wire Gauge [Min]	6 AWG

Part	Wire Gauge [Min]	Wire Gauge [Max]	Mounting Type	Number of Circuits	Current Rating (Amps)	Terminal Screw Material	Material Flammability Rating	Number of Wire Entries	Barrier Type	Features	Number of Rows	Top Termination	Voltage Rating	Terminal Screw Finish	Bottom Termination	Operating Temperature [Min]	Operating Temperature [Max]	Terminal Block Type	Material - Insulation	Pitch [x]	Pitch [x]	Color
Adam Tech TBU-02-W3-CCS	6 AWG	14 AWG	Chassis Panel	2	65 A	Steel	UL94 V-0	2	2 Wall (Dual)	Flange	1	Screws	600 V	Nickel	Screw	-40 °C	130 °C	Barrier Block	Polybutylene Terephthalate (PBT)	0.63 in	16 mm	Black
Adam Tech TBU-02-W3-CC	6 AWG	14 AWG	Chassis Panel	2	65 A	Steel	UL94 V-0	2	2 Wall (Dual)	Flange	1	Screws	600 V	Nickel	Screw	-40 °C	130 °C	Barrier Block	Polybutylene Terephthalate (PBT)	0.63 in	16 mm	Black
