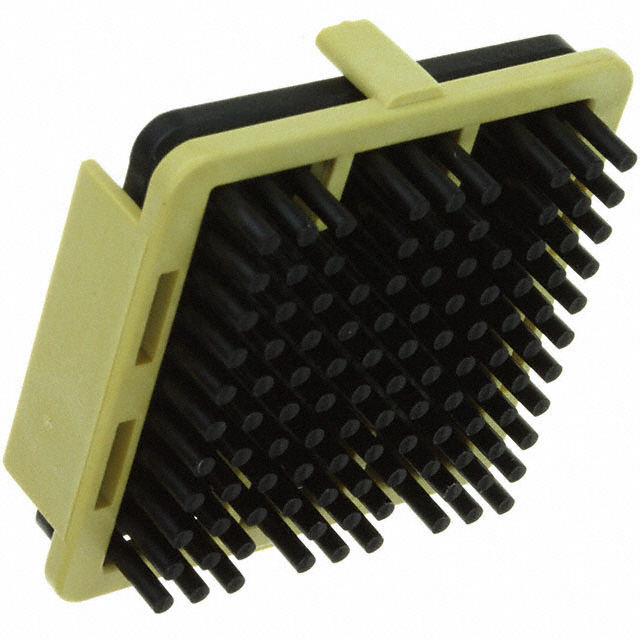

APR38-38-12CB/T

Active

Tusonix a Subsidiary of CTS Electronic Components

HEATSINK FORGED WITH TALL CLIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsA01 Laminating Adhesive Datasheet

APR38-38-12CB/T

Active

Tusonix a Subsidiary of CTS Electronic Components

HEATSINK FORGED WITH TALL CLIP

Deep-Dive with AI

DocumentsA01 Laminating Adhesive Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APR38-38-12CB/T

Attachment Method	Clip
Length	1.461 in
Length	37.1 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	ASIC, BGA, LGA, CPU
Shape	Square, Pin Fins
Thermal Resistance @ Forced Air Flow	3.3 °C/W
Type	Top Mount
Width [x]	37.1 mm
Width [x]	1.461 in

APR38 Series

Part	Thermal Resistance @ Forced Air Flow	Shelf Life	Material Finish	Package Cooled	Length	Length	Shape	Fin Height [z]	Fin Height [z]	Thermal Resistance @ Natural	Width [y]	Width [y]	Material	Type	Attachment Method	Fin Height	Fin Height	Width [x]	Width [x]
Tusonix a Subsidiary of CTS Electronic Components APR38-38-21CB/A01	2.41 °C/W 200 LFM	24 Months	Black Anodized	ASIC BGA CPU LGA	37.5 mm	1.476 in	Pin Fins Square	20.6 mm	0.811 in	9.13 °C/W	1.476 in	37.5 mm	Aluminum Alloy	Top Mount	Thermal Tape Adhesive (Included)
Tusonix a Subsidiary of CTS Electronic Components APR38-38-18CB/A01	2.66 °C/W 200 LFM	24 Months	Black Anodized	ASIC BGA CPU LGA	37.5 mm	1.476 in	Pin Fins Square			9.43 °C/W	1.476 in	37.5 mm	Aluminum Alloy	Top Mount	Thermal Tape Adhesive (Included)	19.6 mm	0.772 in
Tusonix a Subsidiary of CTS Electronic Components APR38-38-28CB/A01	2 °C/W 200 LFM	24 Months	Black Anodized	ASIC BGA CPU LGA	37.5 mm	1.476 in	Pin Fins Square	27.6 mm	1.087 in	7.73 °C/W	1.476 in	37.5 mm	Aluminum Alloy	Top Mount	Thermal Tape Adhesive (Included)
Tusonix a Subsidiary of CTS Electronic Components APR38-38-15CB/A01	2.85 °C/W 200 LFM	24 Months	Black Anodized	ASIC BGA CPU LGA	37.5 mm	1.476 in	Pin Fins Square	14.6 mm	0.575 in	9.73 °C/W	1.476 in	37.5 mm	Aluminum Alloy	Top Mount	Thermal Tape Adhesive (Included)
Tusonix a Subsidiary of CTS Electronic Components APR38-38-23CB/A01	2.21 °C/W 200 LFM	24 Months	Black Anodized	ASIC BGA CPU LGA	37.5 mm	1.476 in	Pin Fins Square			8.23 °C/W	1.476 in	37.5 mm	Aluminum Alloy	Top Mount	Thermal Tape Adhesive (Included)	22.61 mm	0.89 in
Tusonix a Subsidiary of CTS Electronic Components APR38-38-12CB/S	3.3 °C/W		Black Anodized	ASIC BGA CPU LGA	37.1 mm	1.461 in	Pin Fins Square						Aluminum	Top Mount	Clip			37.1 mm	1.461 in
Tusonix a Subsidiary of CTS Electronic Components APR38-38-12CB/T	3.3 °C/W		Black Anodized	ASIC BGA CPU LGA	37.1 mm	1.461 in	Pin Fins Square						Aluminum	Top Mount	Clip			37.1 mm	1.461 in
Tusonix a Subsidiary of CTS Electronic Components APR38-38-12CB/A01	3.3 °C/W	24 Months	Black Anodized	ASIC BGA CPU LGA	37.1 mm	1.461 in	Pin Fins Square						Aluminum	Top Mount	Thermal Tape Adhesive (Included)			37.1 mm	1.461 in
Tusonix a Subsidiary of CTS Electronic Components APR38-38-33CB/A01	1.8 °C/W	24 Months	Black Anodized	ASIC BGA CPU LGA	37.5 mm	1.476 in	Pin Fins Square			7.13 °C/W	1.476 in	37.5 mm	Aluminum Alloy	Top Mount	Thermal Tape Adhesive (Included)	32.6 mm	1.283 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

APR38 Series

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount

Documents

Technical documentation and resources

A01 Laminating Adhesive
