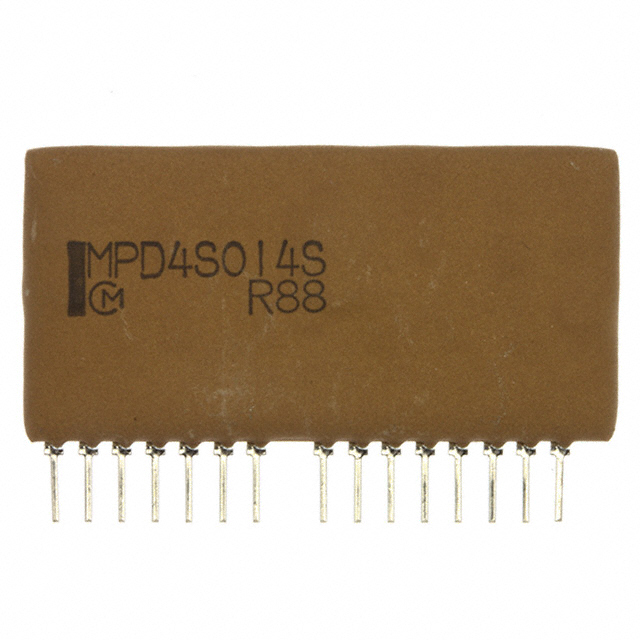

MPD4S014S
ObsoleteMurata Power Solutions Inc.
DC DC CNVRTR 1.8V 3.3V 2.5V 6W
Deep-Dive with AI
Search across all available documentation for this part.
MPD4S014S
ObsoleteMurata Power Solutions Inc.
DC DC CNVRTR 1.8V 3.3V 2.5V 6W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MPD4S014S |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 300 mA, 1 A, 1.3 A |
| Efficiency | 75 % |
| Mounting Type | Through Hole |
| Number of Outputs | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | 16-SIP Module, 15 Leads |
| Power (Watts) | 6 W |
| Size / Dimension [x] | 1.32 " |
| Size / Dimension [x] | 33.5 mm |
| Size / Dimension [y] | 6.8 mm |
| Size / Dimension [y] | 0.27 in |
| Size / Dimension [z] | 19 mm |
| Size / Dimension [z] | 0.75 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 13.2 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output 1 | 1.8 V |
| Voltage - Output 2 | 3.3 V |
| Voltage - Output 3 | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MPD4S Series
Non-Isolated PoL Module DC DC Converter 3 Output 1.8V 3.3V 2.5V 1.3A, 1A, 300mA 4.5V - 13.2V Input
Documents
Technical documentation and resources
No documents available
