T1022NXN7MQB

Active

Freescale Semiconductor - NXP

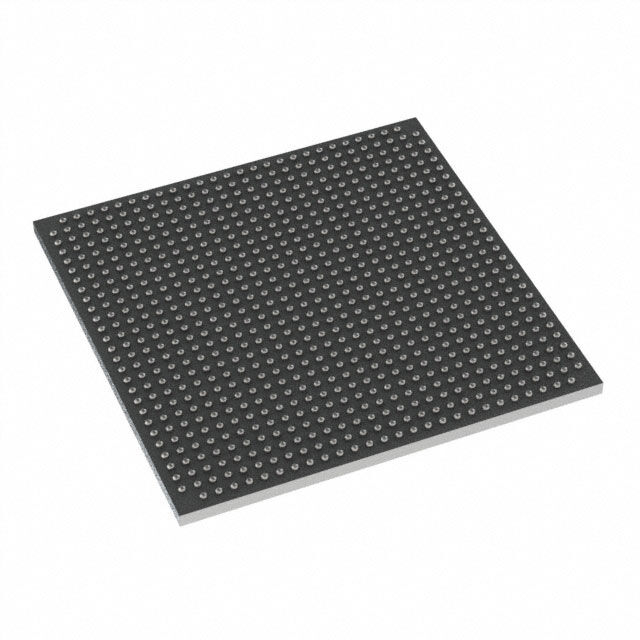

MPU QORIQ RISC 64-BIT 1200MHZ 780-PIN FCP-BGA EACH

Search across all available documentation for this part.

Active

Freescale Semiconductor - NXP

MPU QORIQ RISC 64-BIT 1200MHZ 780-PIN FCP-BGA EACH

Technical Specifications

Parameters and characteristics for this part

Part	Ethernet	Ethernet	Mounting Type	Supplier Device Package	USB	Number of Cores/Bus Width	Operating Temperature [Max]	Operating Temperature [Min]	SATA	Graphics Acceleration	Additional Interfaces	Package / Case	Speed
Freescale Semiconductor - NXP T1022NXN7PQB	1 Gbps	8	Surface Mount	780-FCPBGA	USB 2.0 + PHY (2)	2 Core 64 Bit	105 °C	-40 °C	SATA 3Gbps (2)		I2C MMC/SD PCIe SPI UART	780-FBGA FCBGA	1.4 GHz
Freescale Semiconductor - NXP T1022NXN7MQB	1 Gbps	5	Surface Mount	780-FCPBGA	USB 2.0 + PHY (2)	2 Core 64 Bit	105 °C	-40 °C	SATA 3Gbps (2)		I2C MMC/SD PCIe SPI UART	780-FBGA FCBGA	1.2 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	60	$ 96.55
Newark	Each	50	$ 105.05
		100	$ 98.87

General part information

Supports up to 1.4 GHz core frequencies

Tightly coupled low latency cache hierarchy

32 KB I/D (L1), 256 KB L2 per core
